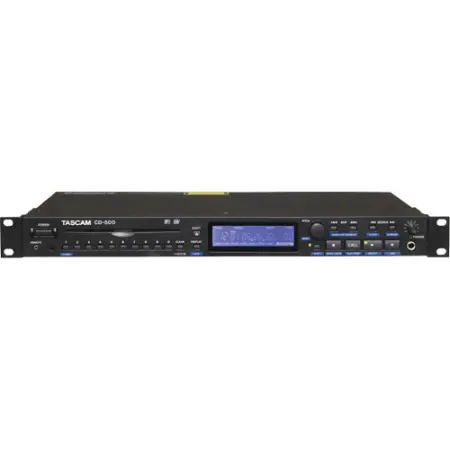

Tascam CD-500B

The Tascam CD-500 Single-Rackspace CD Player provides high-quality audio playback in a slim 1RU design. The player plays standard audio CDs, as well as CD-ROM discs encoded with MP3 or WAV files. The CD-500 offers a number of playback options, including single, random, A/B, program play, incremental play, power-on play, and more. An onboard LCD display shows important info, while a 10-key pad provides instant access to tracks.

The player offers a stereo RCA output, as well as optical and coaxial digital outputs, allowing you to connect to a variety of sound systems. The CD-500 is designed with versatile control options in mind. A wireless remote is included, and connectors are provided for RS-232C and footswitch control. Additional features such as fading, EOM, and more are included to provide ultimate versatility in a compact design.

Features:

Slim and lightweight 1RU chassis fits into any standard equipment rack
Slot-loading mechanism takes up less space and is less prone to breakage than tray-loading drives
Supports audio CDs, plus CD-ROM discs with WAV files up to 16-bit/48kHz and MP3 files up to 320kbps VBR
Playback options include all, single, random, A/B, 99-track program, incremental play, call function, power-on play, and skip back play, plus a 16% pitch control
An unbalanced analog stereo RCA output is provided, which also offers mono output capability
Optical and coaxial digital outputs let you connect to digital equipment
The front-panel LCD display shows track elapsed/remain time, as well as remaining disc time and other vital info
The 10-key pad provides instant access to CD tracks
Frame-accurate searching, plus index search and directory search let you find the exact audio moment you need
Fade in/out is provided with 0-10 second fade time in 0.5 second steps. Fader start and event start are also offered
Resume and EOM functions built-in
3.5mm relay connectors let you perform relay playback with multiple units
A wireless remote is included, which can be enabled or disabled
Connectors for RS-232C control and the optional RC-3F footswitch (sold separately) are provided on the rear and front panel, respectively
A front-panel 1/4" headphone jack provides convenient monitoring

Specifications:

Type
Rackmount, Slot-Loading

Compatible Discs
CD, CD-R, and CD-RW

Audio CD (CD-DA), MP3, and WAV

Supported Bit/Sample Rates
MP3: Up to 320kbps
WAV: Up to 16-bit/48kHz
Audio CD: 16-bit/44.1kHz

D to A Converters
16-bit

Frequency Response
20Hz - 20kHz ±0.5dB

Dynamic Range
95dB or More

Signal-to-Noise Ratio
95dB or More

Total Harmonic Distortion (THD)
0.005% or Less

Channel Separation
95dB or More

Connectors
1 x AC Power Input
1 x Unbalanced Stereo RCA Output (2 Jacks, L/R)
1 x Coaxial RCA Digital Output
1 x Optical Digital Output
1 x 9-Pin RS-232C Control Connector
1 x 3.5mm Relay In
1 x 3.5mm Relay Out
1 x 2.5mm Footswitch Connector
1 x 1/4" Stereo Headphone Jack

Remote Control
Wireless Remote Included, Wired Control Possible

Power
100-240VAC, 50/60Hz
10W Consumption

Operating Temperature
41 to 104°F (5 to 40°C)

Installation
Within 30°

Dimensions (WxHxD)
19 x 1.75 x 11.8" (483 x 45 x 301mm)

Weight 7.7 lbs (3.5kg)

Tascam CD500 (Tascam single cd player)
