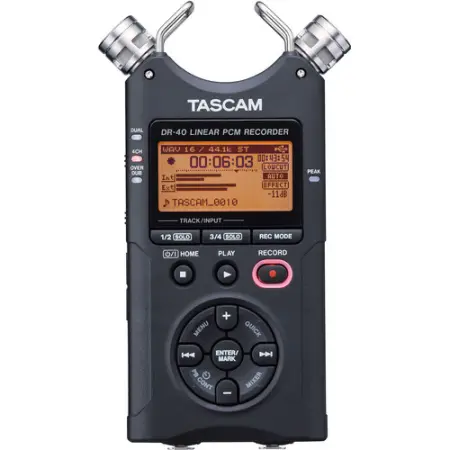

Tascam DR-40 4-Track Handheld Digital Audio Recorder

The adjustable mics, four-track recording and extended battery life of the TASCAM DR-40 give you the flexibility you need to record tracks anywhere.

The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mics are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room. A pair of great-sounding TASCAM microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or 1/4" line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB, and a 2GB card is included.

Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting and low cut filter, and much more – all with TASCAM's simple-to-use interface. No other recorder makes home or live recording as simple as the TASCAM DR-40.

Features:

Unidirectional stereo condenser microphones that can record in A-B and X-Y positions
XLR/TRS inputs compatible with +4dBu line level / +48V
4-channel mode that can be used for dual recording and nondestructive overdub recording, etc.
MS decoding function making it possible to use M-S microphones
Optional RC-3F foot switch and RC-10 wired remote control can be connected
Long-time operation of over 20 hours is possible using just the internal batteries
Reverb effect
Auto recording function that can detect the sound input signal level and automatically start recording
Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
Peak reduction function that detects peaks and automatically sets the optimal level
Self timer recording function
Seamless gain control
Low-cut filter with three levels (40/80/120Hz)
Speed change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments), which is great for practicing music and language study
Level align feature that prevents uneven volume levels
Equalizer setting for adjusting playback sound quality
Divide/delete functions
Loop/repeat playback function that is convention for practicing music and studying languages
Resume function that retains the last stop position and starts playback from that position when power is turned back ON
Jump-back playback function that skips back a preset number of seconds during playback
QUICK menu button for easy access to various functions
High-quality 24-bit/96kHz WAV/BWF linear PCM recording and long recordings as MP3 files possible
SD/SDHC cards can be used for recording media
2GB SD card is included
Mark function that can set up to 99 points for a single track
Audio files created on computers can be played (Only in formats compatible with this product)
Built-in monaural speaker with an output of 0.3W
Pre-recording buffer that can record up to 2 seconds prior to starting recording
When a predetermined maximum file size is reached, a new file is created to continue recording
Track increment creates new files at arbitrary locations during recording
File name format can be set to use a user-defined word or the date
The first six characters of the file name for recording can be set freely
Playlist function
A chromatic tuner is equipped which is helpful for practicing musical instruments
Stereo mini headphone line output / Headphone output connector
128×64 pixel graphic LCD with backlight
High-speed file transfer to a computer is possible using USB 2.0
Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P515U)
Mini USB cable included
Rubber feet for improving acoustic properties during desktop recordings are included
Tripod attachment screw-hole built in to the unit

Specifications:

Type
Hand-Held 4-Track Digital Audio Recorder

Recording/Reading Methods
SD or SDHC Card (64 MB to 32 GB)

Recording Bit Rate
WAV: 16 and 24-bit
MP3: 32-320 kbps, VBR

Sampling Frequency
WAV: 44.1, 48, or 96 kHz
MP3: 44.1 and 48 kHz

Number of Channels
4 (2 Stereo)

Recording Time
All times are for a 1GB memory card
Stereo Mode:
MP3: 17 hours 21 mins (128 kbps), 6 hours 56 mins (320 kbps)
WAV: 1 hour 34 mins (16-bit/44.1 kHz), 1 hour 26 mins (16-bit/48 kHz), 28 mins (24-bit/96 kHz)

Frequency Response
20 Hz~20 kHz +1/-3dB (44.1 kHz, EXT IN-LINE OUT, JEITA)
20 Hz~22 kHz +1/-3dB (48 kHz, EXT IN-LINE OUT, JEITA)
20 Hz~40 kHz +1/-3dB (96 kHz, EXT IN-LINE OUT)

Total Harmonic Distortion (THD)
< 0.05% (44.1/48/96 kHz, EXT IN-LINE OUT)

S/N Ratio
> 92 dB (44.1/48/96 kHz, EXT IN-LINE OUT)

A/D Conversion
24-bit

D/A Conversion
24-bit

Speed Adjustment
50-150% Without Affecting Pitch

Connectors
2 x XLR/TRS Combo Inputs
1 x 3.5mm Headphone/Line Out
1 x High-Speed Mini-B USB 2.0 Port
1 x Remote Jack

Input Impedance
Mic: 2.2 kOhms
Line: 10 kOhms
Input Level Nominal: -19 dBV Mic, +4 dBu Line
Max: -3 dBV Mic, +20 dBu Line
Output Impedance 12 Ohms
Output Level Nominal: -14 dBV (10 kOhms)
Max: +2 dBV (10 kOhms)
Microphone Adjustable Stereo Condenser (X/Y and A/B)
Headphone Output 20 mW + 20 mW (32 Ohms)
Speaker 0.3 W, Mono
Filter 40/80/120 Hz Low Cut
Battery Type/Life 3 x AA (Alkaline or NiMH)
Up to 15 Hours of Continuous Operation, Phantom Power Off
Power 100-240 VAC, 50/60 Hz (via Optional AC Adapter)
Power Consumption 2.5 W Max
Dimensions (WxHxD) Mics Open: 3.54 x 6.1 x 1.38" (90 x 155 x 35 mm)
Mics Closed: 2.76 x 6.1 x 1.38" (70 x 155 x 35 mm)
Weight 7.5 oz (213 g) (Without Batteries)
System Requirements Windows XP, Vista, or 7, Pentium 300MHz, 128MB RAM, USB 2.0 Recommended
Mac OS X v10.2 or Later, Power PC G3, G4, or G5 266MHz Min, 64MB RAM, USB 2.0 Recommended

Tascam DR40 (Tascam portable handheld recorder)
