2500 Watt 2 Way 15" Powered Loudspeaker with KLARK TEKNIK DSP Technology, Speaker Modelling and ULTRANET Networking
2 way full range loudspeaker for portable PA and installation applications
2,500 Watt power featuring KLARK TEKNIK Class-D technology
KLARK TEKNIK Digital Signal Processing for total system control
Speaker modelling includes accurate models of industry standard speakers
SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
ULTRANET digital audio networking connects to mixers and other sources
15" low frequency driver with low mass voice coil for improved transient response
High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
Lightweight fibre glass reinforced composite enclosure
Rugged powder coated perforated steel mesh grille
Dual angle pole mount for accurate audience coverage
Multiple internal rigging points for installation applications
Mains input and link output on Neutrik powerCON* connectors
3-Year Warranty Program*
Designed and engineered in the U.K.

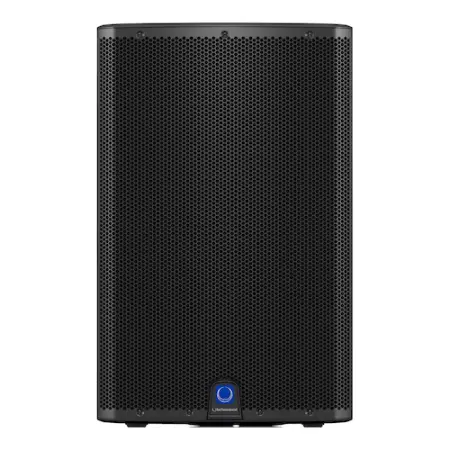

The 2,500-Watt iQ15 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 15" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.
Equipped with a very efficient and lightweight two channel KLARK TEKNIK Class-D power amplifier, the iQ15 provides an impressive 2,500 Watts of output power. A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ for remarkable full range response at low volume levels, and transparent limiting for the utmost clarity at high output levels – and long-term reliability. iQ15’s advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry’s most-respected loudspeakers.
KLARK TEKNIK also developed a highly versatile Spatial Contour Control (SCC) DSP function, which allows the user to easily optimise the iQ15’s frequency response for the physical speaker placement. This advanced functionality provides frequency compensation for stand, floor, wall or ceiling placement, much like the adjustments commonly found on studio reference monitors.
On the rear panel amplifier module, you will find a fully featured user interface consisting of an LCD display, the Channel A and B gain controls, and a single rotary encoder for intuitive access to level, EQ, Speaker modelling, SCC, Subwoofer Integration and Feedback Control (FBI). In addition to the two combination balanced XLR/jack inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the iQ15 features a mic/line switch and level control with signal present LED on each channel.
The iQ15 also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also significantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ15 via PC computer, as well as DSP and speaker modelling firmware updates.
The lightweight fibre glass reinforced composite enclosure is fitted with a rugged powder coated perforated steel mesh grille and multiple internal rigging points for permanent installations. The iQ15 is also fitted with a dual angle pole mount socket, allowing the enclosure to be pole mounted straight on, or raised and angled downwards for optimal audience coverage. Mains power input and link output is provided via Neutrik powerCON* connectors.
Power 2,500 W
Driver 1" Turbosound Titanium Diaphragm Compression Driver
15" Turbosound LF Driver
Inputs 2 x XLR-1/4" Mic/Line
Technology Class-D Amplifier
Interface USB: For access to onboard DSP via PC / MAC computer
Cable Shielded Cat5: To connect your ULTRANET-enabled system, & to daisy-chain IQ series loudspeakers
Display LCD panel with parameter controls
Digital Signal Processing (DSP) KLARK TEKNIK DSP
Network ULTRANET digital audio
Connector Neutrik PowerCon Twist-Lock Connectors: To eliminate potential AC power disconnects and ground faults, and for a noise-free sound reproduction
Socket 2 x 35 mm pole sockets
