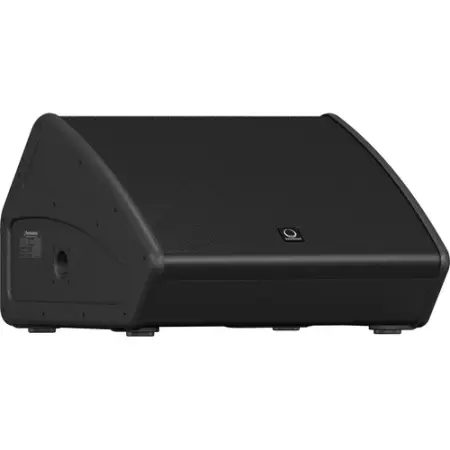

TurboSound TFX152M-AN

FLASHLINE MONITORS
TFX152M-AN
Co-axial 1,100 Watt 2 Way 15" Stage Monitor with Klark Teknik DSP Technology and ULTRANET


Features:

2 way stage monitor for portable applications
1,100 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
High excursion 15" low frequency driver with low mass voice coil for improved transient response
Titanium dome 1" compression driver with extended high frequency reproduction
Low profile design to maximise audience sight lines
Low distortion waveguide provides 60° H x 40° V dispersion
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
15 mm (5/8") plywood enclosure with fibre glass reinforced composite end cheeks
Hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Durable handle for easy lifting and carrying
10-Year Warranty Program*
Designed and engineered in the U.K.

Specifications:

System
Frequency Response 63 Hz to 18 kHz (±3 dB)
57 Hz to 20 kHz (-10 dB)
Nominal Dispersion 60° H x 40° V @ -6 dB points, rotatable
Maximum SPL 127 dB peak
Crossover Type Active
Transducers 1 x 15" (387 mm) LF driver
1 x 1" (25.4 mm) HF compression driver
Limiter Independent HF, LF, peak, and RMS

Amplifier
Maximum Output Power 1100 W Class-D
Protection Short circuit, thermal

Connectors
Input/Link 1 x Combo XLR-1/4" jack
1 x XLR
Sensitivity +1 dBu
Input Impedance 40 kOhms balanced
Maximum Input Level +12.5 dBu
Ultranet Input/Link 2 x RJ45
Remote Control USB type-B
Mains Supply Standard IEC female

Controls
DSP Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter

Functions
Type User DSP functions
EQ Presets Positioning, sound mode, FBQ
Display LCD 128 x 32, blue, backlit
Delay 0 to 300 ms
Equalization High and low shelving EQ
2 x Parametric EQ
Limiter Zero attack input limiter
Presets 20 total presets, 19 user-definable
Crossover High-pass L-R, 24 dB/octave
Protection Lock-out function for all settings

Network
DSP Factory EQ Presets: 24-bit, 44.1 / 48 kHz sample rate
System Signal: 16 channels
Latency: <0.9 ms
Cabling Type: Shielded Cat5
Length: Maximum 246' (75 m) recommended

Power
Voltage 120 VAC, 60 Hz (T8AH 250 V)
Consumption 140 W @ 1/8 maximum power

Enclosure
Construction 5/8" (15 mm) birch plywood + polypropylene plastic
Finish Semi-matt black finish
Grille Powder-coated perforated steel
Dimensions 13.8 x 20.9 x 22.3" / 351 x 530 x 565 mm
Weight 47.3 lb / 21.5 kg

Turbosound TFX152MAN (TurboSound TFX152M AN)
