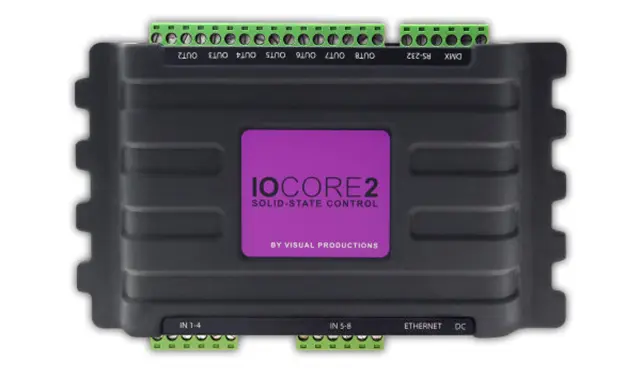

The Visual Productions IoCore2 is a multiple protocol converter and an ideal extension for the solid-state lighting control CueCore 2. The IoCore 2 offers eight optionally digital or analog interfaces as well as eight outputs in the form of relays with a switching capacity of up to two amps.
The latter are suitable for operating blinds or motorized screens, for example. The inputs can be easily connected to external sensors, switches and contacts to trigger events. Configured as an analogue interface, the IoCore can be controlled via external 0-10 Volt or 1-10 Volt, for example by external dimmers or faders.
In addition, IoCore 2 has a DMX 512 connector that can be configured as an input or output and also functions as a bidirectional RS232 interface. Using the network interface, protocols such as OSC, UDP or Art-Net can also be used.
The compact and versatile IoCore 2 is the ideal extension for the CueCore 2 and for the CueluxPro software, in case you need more trigger possibilities than the CueCore 2 already offers. In addition, IoCore can also be used as a multiple protocol converter in combination with third-party show controllers.
Integrated web server
Programming via web browser (LAN/W-LAN)
Solid-state technology - no moving parts, no wear and tear
Compatible with VisualTouch (freely configurable touch screen interface)
Variable linking of all inputs/outputs
8 + 8 potential-free contacts (In/Out)
Inputs optionally configurable analog (0/1-10 V) or digital (0/1)
Outputs can be loaded up to 2 A
Protocol converter (DMX, ArtNet, OSC, UDP, GPI, GPO)
Monitoring of various protocols
Optically separated DMX inputs & outputs
