The two channel Bias V3 DSP amplifier provides reliable premier-grade power and headroom in the smallest possible package size. Fully digitally controlled and with a Rj45 PC communication port as standard, the Bias V3 amounts to a fully integrated, highly sophisticated yet easy to use power source including state-of-the-art sound shaping and system management capabilities.

Specifications:

Number of channels 2
Input 10KΩ Balanced/AES3
Frequency Response 20Hz-20Khz (±0.5dB)
AC Power 90-264V 50-60 Hz PFC
Output 2 x 2800W @ 2 ohms, 2 x 2600W @ 4 ohms, 2 x 1400W @ 8 ohms
Dampening Factor > 5000 @ 20-200 Hz
S/N Ratio >106dB (20Hz - 20KHz)
Crosstalk Seperation > 70dB @ 1kHz
THD+N <0.3% from 1W to full power
IMD <0.3% from 1W to full power
Slew rate 50V/μs
Peak output voltage 165V
Peak output current 102A
AD Converter Dual 24 bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD
DA Converter Dual 24 bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD
Internal precision 40 bit floating point
Crossover Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR), linear phase (FIR), hybrid (FIR-IIR)
Height 44.45 mm
Width 483 mm
Depth 380 mm
Weight 8kg (17.6 lb)

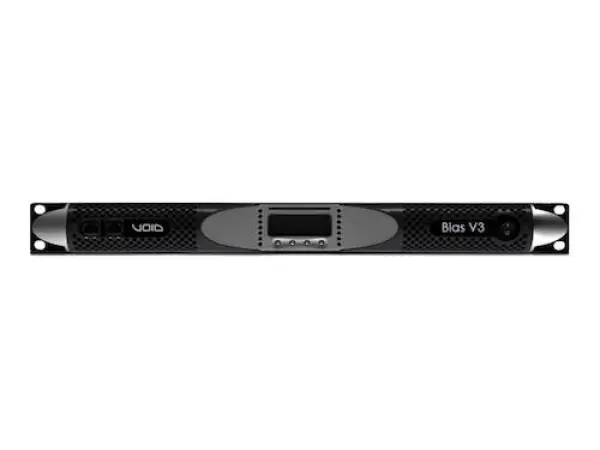

Void BiasV3 (VOID Acoustics Bias-V3)
