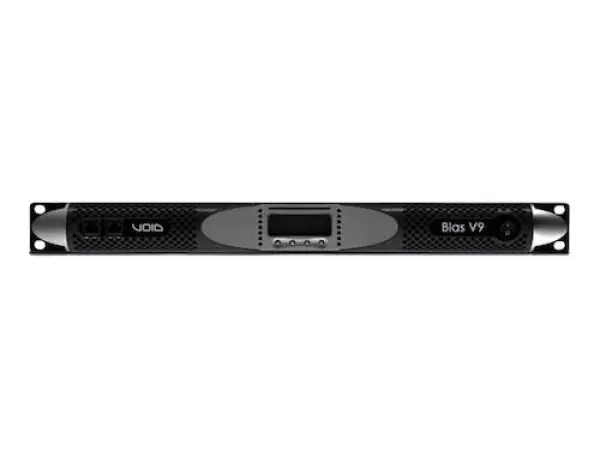

The two channel Bias V9 DSP amplifier provides reliable premier-grade power and headroom in the smallest possible package size. Fully digitally controlled and with a Rj45 PC communication port as standard, the Bias V9 amounts to a fully integrated, highly sophisticated yet easy to use power source including state-of-the-art sound shaping and system management capabilities.

Specifications:

Number of Channels 2
Input 90-264V 50-60 Hz PFC
Frequency response 20Hz-20Khz (±0.5dB)
AC Power 10KΩ Balanced/AES3
Output 2 x 9000W @ 2 ohms, 2 x 5200W @ 4 ohms, 2 x 2700W@ 8 ohms
Dampening Factor > 5000 @ 20-200 Hz
S/N Ratio >110dB (20Hz - 20KHz)
Crosstalk Seperation > 66dB @ 1kHz
THD+N <0.5% from 1W to full power
IMD <0.5% from 1W to full power
Slew Rate 50V/μs
Peak output voltage 225V
Peak output current 125A
AD Converter Dual 24 bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD
DA Converter Dual 24 bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD
Internal precision 40 bit floating point
Crossover Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR), linear phase (FIR), hybrid (FIR-IIR)
Height 44.45 mm
Width 483 mm
Depth 475 mm
Weight 12Kg (26.5 lb)

Void BiasV9 (VOID Acoustics Bias-V9)
