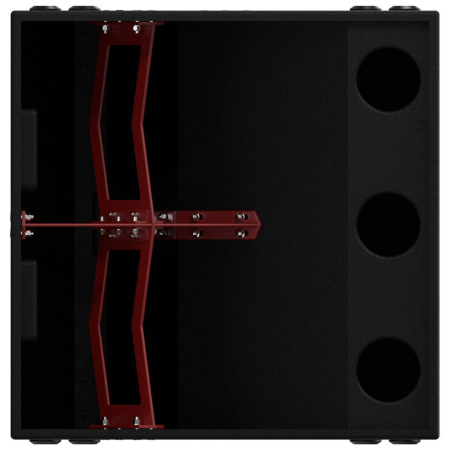

Nexus XL
Single High Power 21" Low Frequency Enclosure

Features
Single high power 21" transducer
Five resonant chambers
Very high efficiency
Fast transient response

Applications
HIGH IMPACT NIGHTCLUB
VIP ROOM
INDOOR AND OUTDOOR DANCE EVENTS
BAR, CLUB, LOUNGE

This new low frequency enclosure expands upon the 5 resonant chamber theory as used in the ever popular Stasys X, a dual 18” low frequency enclosure which has been the backbone of many Void Acoustics installations around the world. Refining the design principle yet further has led to previously unimagined levels of performance. Transient response and articulation were two of the main design criteria to be addressed first. The use of a large transducer has provided very high levels of efficiency and an extended low frequency response, but a high moving mass can also lead to degradation in speed and articulation. Strengthening materials have been woven into the cone to provide superior strength whilst lowering the moving mass considerably. A new dual layer coil arrangement has also been deployed to increase both power handling and efficiency whilst lowering the total moving mass to that of a transducer with a much smaller shift. Both these measures have allowed the design to provide the transient response and delivery required for modern styles of music, yet retain the efficiency and extended low frequency response that only a very large transducer can provide.

Specifications:

Frequency Response 30 Hz - 250 Hz -3dB
Effciency 104 dB 1w/1m
Crossover Point Hi Pass 30 Hz - 24 dB/oct
Impedance 8 ohms
Power Handling 2000 watts rms
Maximum Output 139 dB cont
Driver Configuration 1 x 21"
Dispersion Array dependant
Connectors 2 x 4-pole SpeakON™
Height 738mm
Width 738mm
Depth 860mm

Void Nexus-XL (VOID Acoustics NexusXL)
