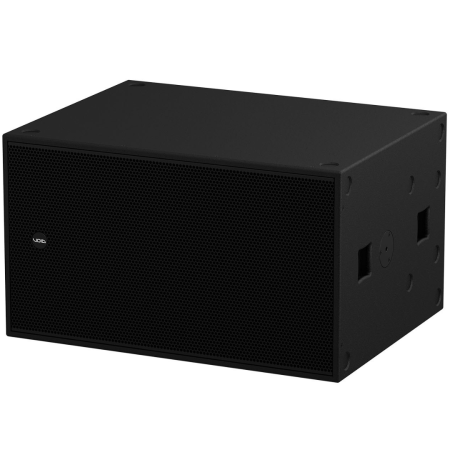

The Stasys 218 is a double 18" reflex loaded, low frequency enclosure built around traditional principles but designed with Stasys philosophy and attention to detail.

In order to extract the maximum performance from the design, the heart of the 218’s 18 mm birch plywood enclosure was subjected to the same resonance mapping procedures as all other Stasys low frequency models. This practice has dictated the type of materials used around the enclosure, optimised the brace positioning, and minimised destructive nodal conditions. All of this creates a structurally superior housing with minimum mass, the least possible cabinet coloration, and vastly increased output.

Transducer selection and integration is also critical when it comes to reflex enclosure design, so exhaustive comparative testing and evaluation led to the new 18” transducer with a high excursion 4" voice coil. The sonic properties of differing cone and surround combinations were studied, as well as differing coil topographies. Flux intensities and out of band abnormalities were also manipulated until the perfect combination was achieved.

The marriage of a technologically advanced enclosure with esoteric transducer performance applied with superlative tuning techniques has resulted in a phenomenal package with state-of-the-art performance that has well and truly left tradition behind.

Features:

2400 Watts AES power handling
Optimally damped, minimal mass cabinet
2 x 4" voice coil 18" low frequency drivers
18 mm birch plywood construction

Applications:

LARGE SCALE TOURING

Specifications:

Frequency Response 32 Hz - 200 Hz ±3 dB
Efficiency 101 dB 1w/1m
Crossover Point 70 Hz - 160 Hz, 24 dB/oct
Impedance 4 ohms
Power Handling 2400 Watts AES
Maximum Output 134 dB cont, 140 dB peak
Driver Configuration 2 x 18" LF
Dispersion Array dependent
Connectors 2 x 4-pole speakON™ NL4
Height 586 mm (23.1")
Width 1020 mm (40.2")
Depth 775 mm (30.5")
Weight 89 kg (195.8 lbs)
Enclosure 18 mm birch plywood
Finish TourCoat
Grille Perforated steel with foam filter

Void Stasys-218 (VOID Acoustics Stasys218)
