Wi Digital Wi Pro AudioMatrix System
DISCONTINUED
5 Photos
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
Wi Pro AudioMatrix Portable Stereo Digital Multicast Wireless Audio System
The Smallest, Most Advanced, Battery-Powered 2.4GHz Stereo Digital Multicast Wireless System for Active Loud Speakers, PA Mixers and DJ Gear!
Elegant simplicity, superior sound, professional dependability!

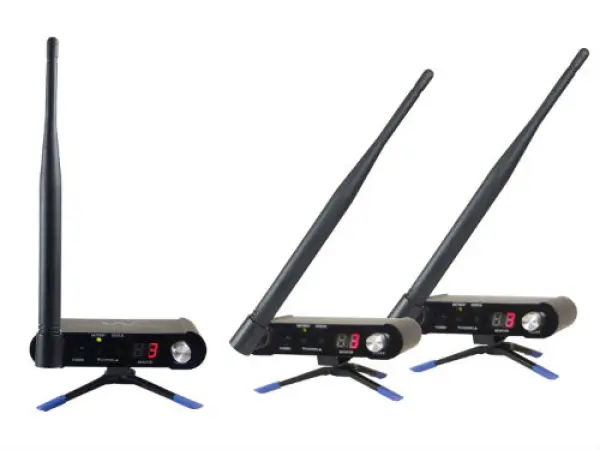

The Wi Pro AudioMatrix WI-AMP50 is designed to enable users to create a digital wireless audio distribution matrix from one transmitter to up to 50 stereo digital wireless receivers without the need to route cables to speakers or run cables from one room to another.
Rugged, Superb Construction, Secure Fit and Mount Pocket Portable Design:
Designed to look, sound and configure like no other pro audio wireless system, This rugged, elegant, plug-and-play system features Wi Digital’s Seek-and-Link algorithms that enable receivers to search for audio stream acquisition and automatically link to the transmitter rendering manual pairing of transmitters and receivers a thing of the past! The Wi Pro AudioMatrix transmitter and receivres are engineered with super strong aluminum chassies and universal mounting metal belt clip with 1/4”-20 screw mount that can be securely or permanently attached to the speakers and mixring gear including stands, tripods and bipods for elevated and unobstructed line of sight setups.
Extreme Power Flexibility:
The Wi Pro AudioMatrix power source’s flexible design boasts an internal rechargeable battery for 6~8 hours of battery operation. Add the standard USB AA battery adapter for up to 20 hours of extended use. No need to power down the system to charge or replace the batteries. There’s also an AC power adapter for continuous operation. You can even use USB bus power to charge and operate your Wi Pro AudioMatrix power. Enjoy true freedom from power concerns.

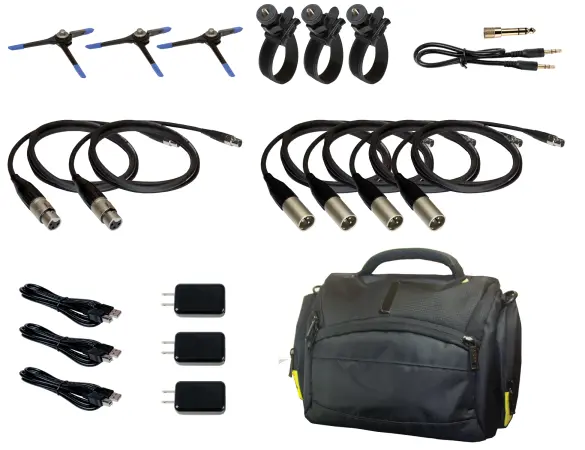

Includes:
(1) Wi Pro AudioMatrix Transmitter
(2) Wi Pro AudioMatrix Receivers
(1) 1/8" to 1/8" TRS Stereo Cable & 1/4" TRS Adadpter
(6) Mini XLR to 1/8" TRS Stereo Cable
(3) Universal Mounting Brackets (For Speaker, stand and more…)
(3) USB Power Cable
(3) Universal USB Power Adapter
(1) Carrying Case
(1) User Guide
(1) Quick User Guide
Features:
2.4 GHz Multicast Stereo Digital Wireless System
True Diversity System with Auto and Manual Frequency Selection Capability
Ultra-Fast System with Less Than 4ms Latency
Wi Digital’s Auto Seek-and-Link For Automatic Audio Stream Acquisition, Pairing and Linking
Ultra Portable Battery Powered System
48 KHz 16-Bit Sample Resolution
15 to 20,000 Hz Frequency Range
Balanced Mini XLR Left and Right Channels and Stereo Line Level Ports
Massive Pro Audio Instruments Support Including Active Loud Speakers, PA Mixers, DJ Gear and more
Includes All Accessories and Carrying Case
Supported Instruments & Devices List:
• Active Loud Speakers
• Powered Monitors
• Amplifiers
• PA and Live Sound Systems
• Mixers
• DJ Gear
• Digital Multitrack Recorders
• Earset and Lavalier Microphones
• Professional Studio Monitor Headphones
• In-Ear Professional Personal Monitors
• MP3 Players & Devices with headphone jack
All Inclusive Accessories:
This combination of audio performance, simplified setup, portability and all inclusive accessories with high quality golden tips cables lets you set up quickly and easily!
No heavy cables
No bulky gear to haul
No Mounting or Configuration Hassles
Specifications:
Transmission Format 2.4 GHz Digital Wireless
Bit Rate 16-bit, 48 kHz stereo Quality (Uncompressed Audio)
Frequency Response 15Hz - 20kHz
Frequency Selection Auto / Manual
Latency 2~4ms

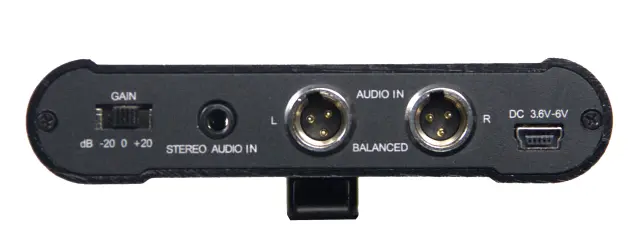

Connectors 1/8" TRS Stereo / Mini XLR Balanced (Left Channel) / Mini XLR Balanced (Right Channel)
Input Impedance 1 M ohm
Max Input Level 2.8V RMS
Output Impedance <10 ohm
Max Output Level 2mV RMS
SNR >96 dB
Distortion 0.12% THD
Distortion 0.12% THD
Selectable gain levels -20 dB, 0 dB and +20 dB
Wireless Range > 250 Feet (May be dependent on line sight, Range my very due to local conditions)
Audio Multicast One Transmitter to 50 Receivers simultaneously
Audio Controls Volume Up/Down
Rechargeable Battery Life 6 - 8 Hours (13-18 hours with optional AA battery power booster)
Power Input 5V DC, 500 mA (USB Bus Power)
Maximum Units Operating at the Same Time 50
WiFi Safe Yes
MAC, PC Support NO
Mounting Metal Belt Clip with 1/4-20 Tripod Mounting Screw
Dimensions 2.7” x 0.8” x 3.8”
Weight 0.13 lbs
Enclosure Aluminum
Works great for the project we are using it for. Clear sound and no unsightly wires needed to be ran.
Great product for setting up powered speakers in a separate location at a venue without running additional cables. Clear crisp sound with no noticeable delay. Highly recommend!! Thanks KPODJ for your great service, pricing, and prompt shipping!
I really wanted to like these -- great mounting options, USB powered, batteries in a pinch... even came with a great carrying case (DSLR camera bag). Unfortunately, I haven't had the same positive experience as others with this product. I'm on my second set of units after getting the first ones replaced under warranty, and despite following the recommendations of Wi Digital's support, I haven't been able to get good results. I experience crackles, pops and clicks -- even at a rural venue with very little RF interference, nobody in the room yet, no photographers with wireless flash, and only one Wi-Fi network to contend with on the 2.4GHz band. The units had direct line of sight and were less than 100' apart in that particular instance.<br /> <br /> I gave them 2 stars instead of one because a lot of good design elements are there, and maybe I just got unlucky with 2 bad sets.<br /> <br /> Be sure to try these out immediately after purchase to enusre they work for you, or you may be stuck with an expensive mistake.
Unfortunately, this system didn't work for us. While it sounded GREAT when there were no guests in the venue room......once the room was half full with guests (50-100 people) would start POPPING LOUDLY occasionally. We tried all 30 channels at 4 different events and got the same results. Popping noises. In pre-event set-up...system sound beautiful and TRUELY hoped this would work. but sadly, we had to return it as it NEVER worked reliably for us. Kpodj were FANTASTIC handling this situation and will recommend them...but NOT this wireless audio system.
