DESCRIPTION

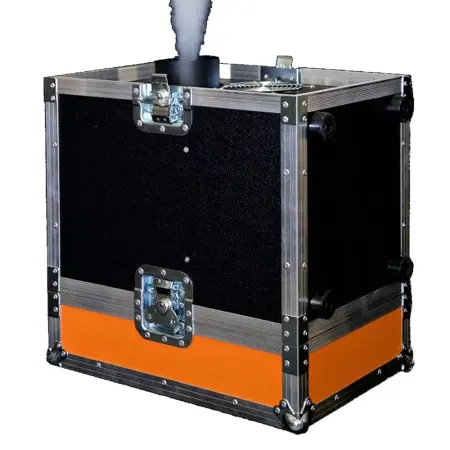

The Base Vertical is a stunning effect.

Designed specifically from demand this unit creates the perfect vertical effect that makes a fantastic impact.

The Base Vertical reaches operation in less than 7 minutes. It can be controlled via DMX using only one channel or built in onboard timer. Wired and wireless controllers are also available.

Hazebase water-based fluid is designed for any environment. From a quick dissipation to a dense fog that will hang in the air. The unit can run continuously at 50%.

Specifications:
Power Supply: 230 V AC, 50 Hz
Procedure: Vaporizing fog generator
Power requirement: 1300 Watt
Warm up time: Approx. 7 min.
Fluid consumption: At max. output 120 ml/min; at cont. output 35 ml/min
Fluid tank capacity: 5 Liters
Fog output: Adjustable in steps a 1 % (0-99)
Fogging time: At 100% output approx. 40 sec; at < 50% output continuous output
Control: DMX 512; 0-10 V analog internal Timer
Temperature control: Microprocessor controlled
Overheating protection: Heater block/thermostat Pump/thermal switch
Dimensions (L x W x H x): 53 x 23 x 24 cm

XLaser BaseVertical (X-Laser Base-Vertical)
