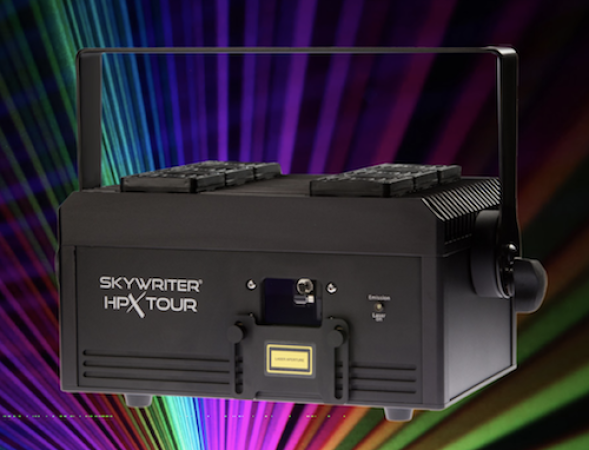

Our most powerful Skywriter ever is also our most rugged, as the HPX F-5 is suited for installs in just about any venue, yet it can also handle the rigors of touring. With 5W of RGB full-color laser effects, the HPX F-5 can easily fill venues holding up to 5,000 guests, and can project enormous, vivid graphics hundreds of feet away.
The Skywriter HPX F-5 is Pangolin FB4 integrated.
5W of all-diode RGB color
Sealed optical deck
30K precision graphics
Rugged, compact housing
Engineered to be efficient
Six cooling fans and 18 fins totaling nearly 500 square inches of heat sinking area keep the HPX Tour cool, and help your rig produce awesome effects for longer.
Ruggedness for the road
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show.
Professional, precision graphics
With ILDA-standard 30K graphics scanners, you can easily create sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.
Certified to the world’s toughest quality standards
X-Laser’s Skywriter projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.
Control: Pangolin FB4 integrated
Scanners: High-speed, closed-loop galvanometers, max
scan angle 45 degrees, 30K PPS at 8 degrees
Settings interface: FB4 LED
Color modulation: Analog via ILDA, 1,000+ colors
Laser energy: 5.1W raw (800mW R, 1.7W G, 2.6W B)
Beam source: Direct-injection diode modules
Wavelengths: 638nm red, 520nm green, 450nm blue
Physical: 15”L x 9.25”W x 10.25” H, 16.8lbs
(381mm x 235mm x 260mm, 7.62kg)
Housing type: Anodized 6061 aluminum
Power draw: 80W typical, 100W peak
Power: 150W PowerCON input
5x20mm 250V 6.3A fast-acting fuse
Beam divergence: 1-2 mRad
Cooling: External heat sink and fan system
FDA/IEC hazard class: Class 4
International safety: IEC 60825-1 ed. 2007
FDA/CDRH: 21CFR1040.10 and 1040.11(c)
Canadian safety: CSA C.22.2 No. 60950-1
EU safety: EN 60825-1, EN 60950
Included: User Training DVD, User Manual, PowerCON cord, Warranty information, Beam block foil, Remote E-Stop Plug, Keys
