Description:
Ultimate Power. Ultimate Control. Ultimate Laser.

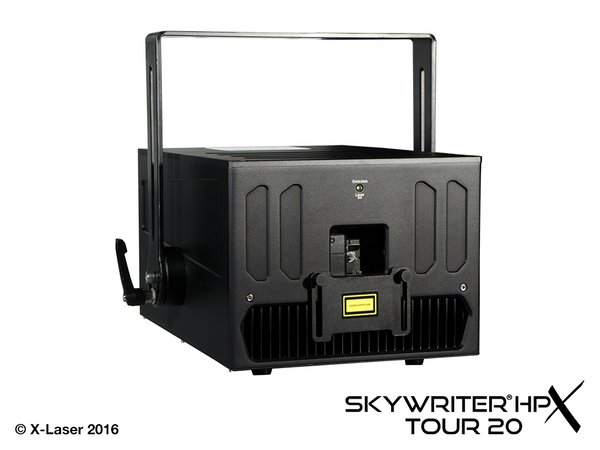

The Skywriter HPX M-20 is engineered to outmatch the competition by offering superior brightness, superior control and superior value. For the largest venues and audiences, indoors and out, X-Laser’s highest-powered lasers are the perfect solution for incredible laser effects. The Skywriter HPX M-20 boasts 20W of RGB full-color laser effects and is perfect for large-scale professional touring and install applications. With the ultimate in RGB color mixing technology and total control featuring integrated X-Laser Mercury control for pro lighting consoles (DMX, sACN, Art-Net), the Skywriter HPX M-20 is an ultra-high-powered unit that makes a lasting impression. (The Skywriter HPX F-20 is also available with Pangolin FB4 integrated).

20W balanced RGB laser engine
Integrated with X-Laser’s Mercury laser control system with the master and basic profiles including:
450+ gobos
11 digital prisms
50 color macros
60 motion macros with variable speed and amplitude
5-pin DMX
Large, matte-finish LCD interface
Art-Net connectivity (upgradable to our etherStop system)
Ideal for large venues, touring acts and large production companies
Sealed optical deck for resistance to water, wind and dust
Series of external fans keep the components and diodes cool and running efficiently
Precise and crisp low-divergence beams create beautiful animated and text effects
Produces more than 1,000 colors with additive analog RGB color mixing
Double quality checked in a 26-point inspection prior to shipping
X-Laser no-hassle 2-year warranty
Class 4 High-Powered Laser; FDA Variance required. Free EZ Variance Kit available separately
Plastic molded road case with custom foam sold separately
Features:
Direct compatibility with lighting consoles

With X-Laser’s Mercury laser projector control system, The Skywriter HPX M-20 functions just like any other moving-head fixture when connected to a pro console.

Big power, big value
With 20W of laser power, The Skywriter HPX M-10 produce mind-blowing effects at a value that makes it accessible for venues, production companies and rental houses of all sizes.

Engineered for efficiency
Series of robust external cooling fans and hundreds of square inches of heat sinking area keep the fixture cool, to help your rig produce awesome effects for longer.

Road ready, road rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.

Professional, precision graphics
With ILDA-standard 20K graphics scanners, you can easily create sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.

Certified to the world’s toughest quality standards
All X-Laser projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.

Specifications:
Control: X-Laser Mercury integrated
Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 20K PPS at 8-degrees
Settings interface: Mercury LED
Wavelengths: 638nm red, 520nm green, 450nm blue
Color modulation: Analog via FB4, 1,000+ colors
Beam source: Direct-injection diode modules
Housing type: Anodized 6061 aluminum
Beam divergence: 1-2 mRad
Cooling: External heat sink and fan system
FDA/IEC hazard class: Class 4
International safety: IEC 60825-1 ed. 2007
FDA/CDRH:10 and 1040.11(c)
Canadian safety: CSA C.22.2 No. 60950-1
EU safety: EN 60825-1, EN 60950

(X-Laser HPXM20)
