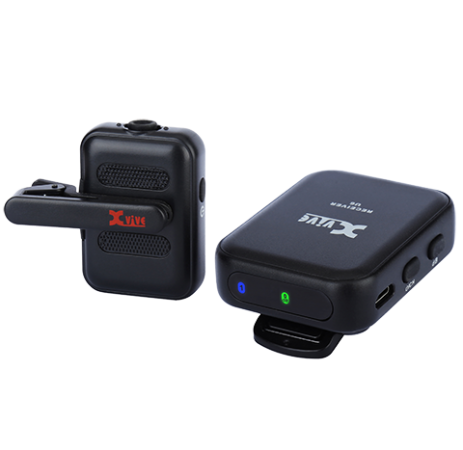

The U6 was designed for versatility! You can wear the transmitter in four different ways: two visible and two hidden. If you want to show off your U6, use either the clip or the hook and loop fasteners to attach the transmitter on top of your clothing.

If you prefer a clean on-camera look, use the system’s hook and loop fastener mode to hide the transmitter under a jacket or shirt—or simply use the clip and tuck the unit on the underside of your clothing.

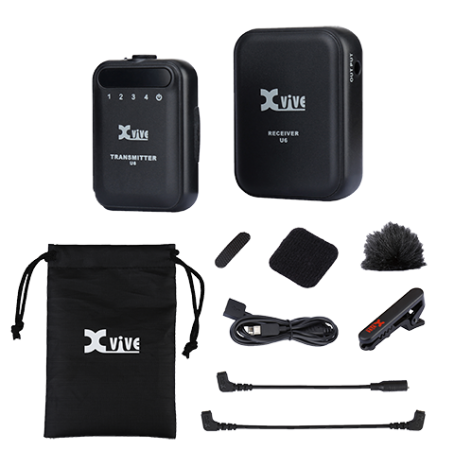

The U6 receiver is fitted with a shoe mount which allows it to sit comfortably atop your DSLR. The supplied audio cable sends the sound from the receiver to the camera. Just slide it in, plug it in and turn it on!

Connecting to a smartphone is also a breeze, provided you have any necessary adapter that bridges from a 1/8”/3.5 mm plug (the TRS to TRRS adapter, included with the U6) to your phone’s input.
The receiver is so small and light that it can be mounted to the back of your phone (or a tripod) using the supplied hook and loop fasteners, or even a piece of tape.

Despite its small size, light weight, and low price, the U6 system doesn’t scrimp on sound! The signal is high-resolution 24-bit / 48 kHz digital audio—with wide dynamic range, low noise, low distortion and a broad frequency response.

U6 broadcasts a stable wireless signal on the 2.4 GHz band, over an astonishing 90-foot range. The system has four channels to choose from, and the True Diversity receiver has two antennas instead of one—ensuring a solid connection every time, even with other wireless devices in the area! The latency is imperceptible at only 5 ms, so your voice and your lips will always be in sync.

Charging the U6 system is a breeze. Simply connect the included dual USB cable to any 5V USB power source, plug in the transmitter and receiver, and both will be charged in two hours. A full charge gives you four hours of uninterrupted wireless audio!

SPECIFICATIONS:


WIRELESS TYPE

2.4 GHz ISM
BIT DEPTH/SAMPLE RATE

24-bit / 48 kHz
SWITCHABLE CHANNELS

4
SIMULTANEOUS CHANNELS

4
FREQUENCY RESPONSE

80 Hz – 20 kHz
DYNAMIC RANGE

100 dB
SIGNAL-TO-NOISE RATIO

100 dB
TOTAL HARMONIC DISTORTION

0.2%
LATENCY

5 ms
OPERATING RANGE

90 ft
SENSITIVITY

-32 dB ± 3 dB
RF SENSITIVITY

-86 dBm and -92 dBm
ANTENNA TYPE

True Diversity 1/4 wave sleeve dipole, non-removable
TRANSMITTER
MOUNTING MODES

Clip / Hook+Loop
MICROPHONE

Built-in, omnidirectional
DIMENSIONS

30 x 13 x 43 mm / 1.18" x 0.51" x 1.69"
WEIGHT

18 g (0.63 oz)
STEREO/MONO

Mono
RF OUTPUT POWER

<10 mW E.I.R.P. max
NUMBER OF ANTENNAS

1
RECEIVER
MOUNTING MODE

Shoe mount
CONNECTOR

Stereo 3.5 mm (1/8") TRS output
DIMENSIONS

39 x 14 x 50 mm / 1.54" x 0.55" x 1.97"
WEIGHT

29 g (1.02 oz)
OUTPUT GAIN PRESETS

0 dB, -10 dB, -20 dB
NUMBER OF ANTENNAS

2
BATTERY
TYPE

Built-in 3.8V rechargeable Li-ion / Receiver: 420 mAh / Transmitter: 330 mAh
LIFE

4 hrs
CHARGING TIME

2 hrs
CHARGING VOLTAGE / CURRENT

5V 2A
USABLE WHILE CHARGING

Yes

X vive U6 Wireless Mic (XVive U6 Compact Wireless Mic System)
