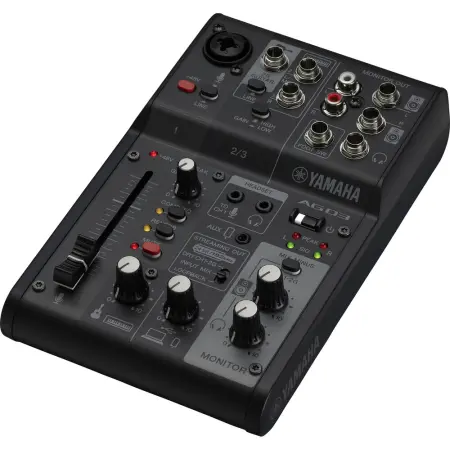

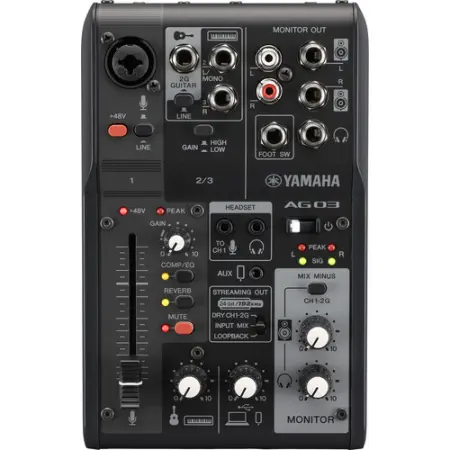

Yamaha AG03MK2 B | Black 3-Channel Mixer



          This item is in stock!






$189.99 new
$155.00 reseal
Warranty
Reviews: 0 Description Financing Q&A: 0
or $17/mo $0 Shipping, $0 Tax





or $ 17/mo $0 Shipping, $0 Tax


Product Description

The black AG03MK2 from Yamaha is a compact 3-channel mixer and USB interface with built-in DSP for streaming, sound reinforcement, and recording small performances, podcasts, lectures, and similar applications. This updated MK2 version adds a mute button and 3.5mm TRRS input for more flexible live streaming work; it also features an improved build design with updated circuitry for better sound. Capable of recording and playback of high-resolution 24-bit / 192 kHz sound, this mixer features one XLR-1/4" combo mic/line input, as well as stereo 1/4" line inputs with level control, and a 3.5mm aux input for portable music players and headsets. The mixer is compatible with Windows/Mac computers as well as iPads and iPhones.

The XLR-1/4" combo mic/line input features switchable 48V phantom power for use with a condenser microphone, and input 2 offers a Hi-Z switch for use with an electric guitar or bass. The AG03MK2 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.

Features:
One Mic/Line Combo Input
Two 1/4" Line Inputs
3.5mm TRRS In/Out for Smartphone
Record & Playback up to 24-Bit / 192 kHz
Zero-Latency DSP FX, Loopback Function
48V Phantom, Hi-Z Switch for Guitar
3.5mm TRS Input for Headset/AUX
1/4" and RCA Stereo Outs
Powered via USB
Works With PC, Mac, iPhone, and iPad

Specifications:
Mixer
Number of Analog Input Channels 3 (1 Mono / 1 Stereo)
Number of Mic Preamps 1
Analog Output Channels 1 x Stereo Control Room/Monitor Output
1 x Stereo Tape/Record Output
1 x Stereo Headphone Output
Max I/O Capacity 3 x Input / 2 x Output
Mix Routing 1 x Insert per Mono Input Channel, Stereo Input Channel
Faders 1 x 2.4" / 60 mm Channel Fader
Meters Main Meter:
2 x 2-Segment LED
Signal Processing
Input Pad -26 dB (Line Inputs, Hi-Z Inputs)
Dynamic Processing Input Channels:
Compressor
EQ Input Channels:
4-Band Parametric
Built-In Effects 1 x Stereo Reverb
Digital Audio
Sample Rates Up to 192 kHz
Bit Depth Up to 24-Bit
Performance
Frequency Response 20 Hz to 48 kHz (at 192 kHz)
Crosstalk -80 dB
EIN -128 dBu
Noise Floor -103 dBu
THD+N Analog Input to Analog Output:
0.01% at Min Gain (+4 dBu)
Connectivity
Analog Inputs 1 x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input
1 x 1/4" TS Unbalanced Line/Hi-Z Input
1 x 1/4" TS Unbalanced Line Input
1 x 1/8" / 3.5 mm TRS Balanced Mic/Aux Input
1 x 1/8" / 3.5 mm TRRS Balanced Stereo Line Input
Analog Outputs 2 x RCA Coaxial Unbalanced Mono Monitor/Record Output (1 Stereo Pair)
2 x 1/4" TS Unbalanced Mono Monitor/Record Output (1 Stereo Pair)
1 x 1/4" TRS Balanced Stereo Headphone Output
1 x 1/8" / 3.5 mm TRRS Unbalanced Stereo Output
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Output
Phantom Power +48 V, Selectable On/Off
Digital I/O None
MIDI I/O None

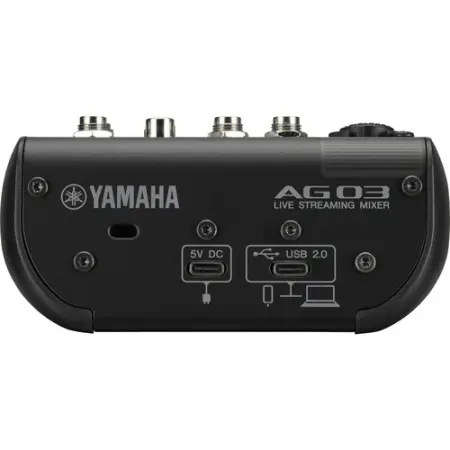

USB 1 x USB Type-C (USB 2.0, 2-Track Record, Audio Playback, Audio Streaming, Control, Host Connection)
Bluetooth None
Compatibility
OS Compatibility macOS
Windows
iOS
Mobile Device Compatibility iPad
iPhone
Internet Connection Required for Software/Driver Download, Media Streaming
Required Hardware USB Port
Power
DC Input Power 5 VDC at 900mA (USB Bus Power)
Power Consumption 4.5 W (Maximum)
Physical
Rack Mountable No
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 5 x 2.5 x 7.9" / 12.6 x 6.3 x 20.1 cm
Weight 1.8 lb / 0.8 kg
Packaging Info
Package Weight 2.565 lb
Box Dimensions (LxWxH) 10 x 8.1 x 4.5"

Yamaha Pro AG03MK2-B   ( Yamaha AG03MK2 )
