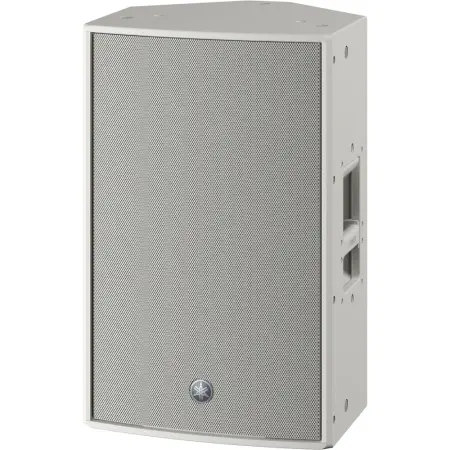

Yamaha DZR12W 12" 2-Way Bi-Amped Powered Loudspeaker

The DZR12-W is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Features:

2-way powered loudspeaker with a 2" HF and a 12" LF
Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s sound engineering demands
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

Specifications:

Frequency Range (-10 dB) 39Hz - 20kHz
Coverage Angle H 90° x V 60°
Power Rating 2000W (LF:1000W, MF/HF: 1000W)
Maximum SPL 139dB SPL
LF Driver 12" Cone, 3" Voice Coil, Neodymium magnet
HF Driver 2" Voice coil, 1" Throat compression driver, Titanium diaphragm, Neodymium magnet
Dimensions (H x W x D) 25.4" (646 mm) x 16.1" (410 mm) x 15.5" (394 mm)
Weight 47.2 lbs (21.4 kg)

Yamaha DZR-12 White (Yamaha DZR 12 W)
