This product has been discontinued by the manufacturer. Please contact us to find a replacement.

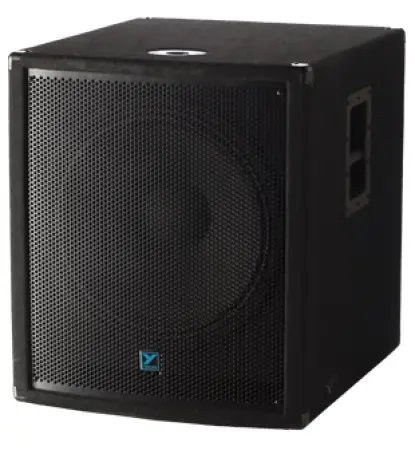

Yorkville YX18SC
YX Series - Passive Subwoofers YX18SC -18-inch - 400 watts
Features
400 Watt Subwoofer
18-inch Woofer
Bass Reflex Cabinet Design
6 Ohm Design for Easy Amplifier Configuration
45Hz - 150Hz Frequency Response
Internal Passive Low-Pass Filter for Plug-And-Play Simplicity
2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
Integrated All Metal Speaker Pole Mount Adaptor
Solid 5/8-inch (15mm) Plywood Construction
Made in Canada
Overview
The passive YX18SC uses the tried and true vented 18-inch front loaded bass reflex subwoofer design. The internal passive crossover allows the 400-watt YX18SC to be added to any system without additional external processing.
Solid plywood cabinet construction ensures the YX18SC will remain rattle and buzz-free at the high volumes a subwoofer must endure. Integrated pole mount adaptor allows full range loudspeakers like the YX15 or YX15P to be raised above the crowd easily and effectively with a simple subwoofer stand or speaker pole.
Designed with working musicians in mind, the YX18SC offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker.
Technology
Solid plywood cabinet construction ensures YX passive subs will remain rattle and buzz-free at the high volumes a subwoofer must endure. Bass reflex designs and internal passive crossovers allow YX passive subs to be added to any system without external processing.
Integrated pole mount adaptor allows full range loudspeakers to be raised above the crowd easily and effectively with a simple subwoofer stand or speaker pole.
Designed with working musicians in mind, the YX subwoofers use rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker.
Specifications
System Type Subwoofer
Active or Passive Passive
Program Power (Watts) 400
Nominal Impedance (Ohms) 6
Sensitivity (dB @1Watt/1m) 98
Max SPL (dB) 124
Frequency Response (Hz +/- 3dB) 45 - 150
Crossover Frequency (Hz) 150
LF Driver(s) 18 inch
LF Program Power(Watts) 400
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Other Controls / Features Built-in passive low-pass filter for Plug-and-play simplicity
Corners Metal
Feet Plastic Glides
Wheels No
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes (Top)
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 26 x 22 x 25
Dimensions (DWH xbackW, cm) 66 x 55.9 x 63.5
Weight (lbs/kg) 74 / 33.6
