Blizzard Lighting Weather System COB (Blizzard Weather Sys COB)

There's a new storm brewing... The Weather System™ COB is currently tracking and heading your way!

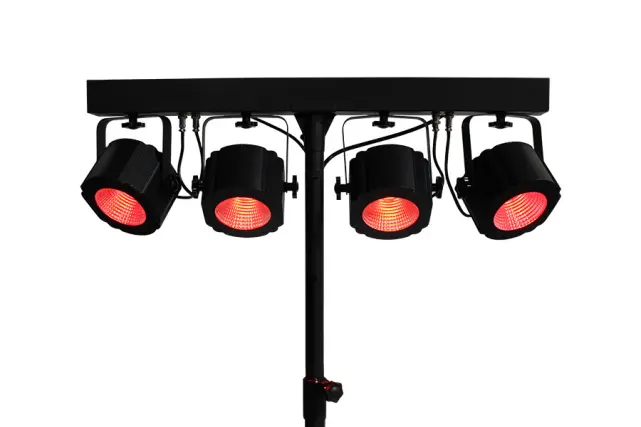

The Weather System™ is a 4 fixture LED lighting system, powered by a total of 4* Tri-Color RGB 30W COB LEDs. It is an All-In-One fixture with that classic, single par-can feel and comes with an adjustable stand, carry case, and foot activated control pedal board!

COB = Chip On Board - This new amazing LED technology provides a brighter, more powerful, LED light source due to having many little LED chips on a "wafer" board projecting the light vs a single source LED diode.

The Weather System™ COB features 2/3/4/7/8/12/15 user selectable DMX channel modes where there's a wide variety of control configurations per mode to meet your needs including simple 2-channel DMX mode that offers all of its built-in static colors, 16 built-in programs, and sound active mode with adjustable built-in microphone sensitivity.

Auto mode features 16 different built-in programs including a variety of unique chase effects between each of the 4 fixtures, plus static color and strobe effects.



It's a versatile 4 fixture RGB COB lighting system that includes an extendable 8ft max height lighting stand, plus each fixture can also be swiveled, tilted, and locked down tight with secure grip locking knobs.

Controlling the Weather System™ COB is made easy via DMX, a rear side 4-button LED control panel, or you can plug in the Weather System COB's convenient 4-pedal foot activated control pedal board that's equipped with a 16ft cord. The control pedals include Auto Run, Sound Active, Freeze & Blackout.
The Weather System™ COB is an exceptional performer at an exceptional price. And of course, it is also backed by Blizzard's 2-year warranty.

Main Features:

  •   User selectable 2/3/4/7/8/12/ or 15 DMX channels
  •   4 heads, each fitted with a 30W Tri-Color RGB LED source
  •   Independent fixture swivel & tilt positioning
  •   Full color mixing in standalone, master/slave and DMX modes
  •   Built-in automated programs via master/slave
  •   Built-in sound activated programs via master/slave
  •   Easy to use LED digital control panel
  •   3-pin male input and 3-pin female output
  •   Adjustable stand, dual hanging brackets, & 2 carrying cases
  •   Heavy duty, black aluminum housing

Depth

  •   Main Unit: 4.1”(102 mm)
  •   Foot Controller: 17 inches (152.6 mm)
  •   Power Cord: 16 ft (5 meters)

Width

  •   Main Unit: 35”(890 mm)
  •   Foot Controller: 17 inches (432 mm)

Height

  •   Main Unit w/bracket: 10.9 inches (276 mm)
  •   Foot Controller: 2⅛ inches (5.5 cm)
  •   Max. Safe Operating Height w/stand: 8 feet

Weight

  •   Main Unit: 19.4 lbs (8.8 kg)
  •   Foot Controller: 3.5 lbs (1.6 kg)
  •   Stand: 8 lbs (3.63 kg)

Power

  •   Operating Voltage: AC 120VAC, 60 Hertz
  •   Power Consumption: 90W, 1.31A (full white)
  •   Fuse: 3A 125V
  •   Power Factor: .60

Light Source

  •   LEDs: 4* 30-watt Tri-Color LEDs, 50,000 hours


Optical

  •   Beam Angle: 30 degree optics standard

Thermal

  •   Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control

  •   Protocol: USITT DMX-512
  •   DMX Channels: 2/3/4/7/8/12/15 Channels
  •   Input: 3-pin XLR Male
  •   Output: 3-pin XLR Female
  •   Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Forecast

  •   Extremely Bright and Colorful Day!

Warranty

  •   2-year limited warranty, does not cover malfunction caused by damage to LED’s.

Single Pod Fixture

Lux / Meter Red Green Blue All
1M 1,394 1,594 1,783 4,564
2M 551 580 686 1,656
