x 5 LED Moving Matrix
Thoroughly professional and feature-packed, the Cameo Auro® Matrix 500 produces rich RGBW color mixing and three temperatures of white with its 5 x 5 arrangement of 25 powerful 15 watt quad LEDs. Two high speed 3-phase motors enable infinite pan and tilt, 16-bit resolution provides ultra smooth rotation and dimming, and the fixture's 3,600 Hz refresh rate makes it a perfect choice for TV and video applications.

Engineered for awesome, highly creative lighting, the Auro® Matrix 500 includes single pixel control for exciting chase effects, a 20 Hz strobe plus color temperature and automatic positioning correction. It is RDM enabled and provides four modes of DMX control. The fixture is Art-Net compatible with automatic FDT bridging to maintain daisy chain operation in case of single device failure. A battery powered 6-button display enables easy offline configuration.

The Auro® Matrix 500's rugged compound enclosure is built for superior durability and sports a super quiet, temperature controlled fan, 3-pin and 5-pin DMX, RJ45 Ethernet and Neutrik powerCON mains connectors. The moving light operates on all voltages from 100 - 240 V AC.

Features:

LED Moving Matrix with infinite pan and tilt
Two high-speed 3-phase motors
16-bit resolution and 3,600 Hz refresh rate
5 x 5 powerful 15 watt quad LED array
Rich RGBW colors, subtle pastel shades, 3 natural whites
4 DMX modes, RDM capability and ArtNET compatible
Ethernet switch with FDT bridging (failsafe data transfer)
Automatic positioning and color temperature correction
Single pixel control
20 Hz strobe and 4 dimming curves
3- and 5-pin DMX, Neutrik powerCON and RJ45 Ethernet connectors
Silent-operation temperature controlled fan

Specifications:

Product number: CLAM500
Product type: LED Moving Lights
Type: LED Moving Heads
Color spectrum: RGBW
Number of LEDs: 25
LED type: 15 W
Refresh rate: 3600Hz
Dispersion: 7.7°, 4.7°
DMX input: RJ45 Ethernet In (ArtNET), XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, RJ45 Ethernet Out (ArtNET), XLR 5-pin female
DMX mode: 111-channel, 33-channel, 8-channel, 37-channel
DMX Functions: strobe, auto programs, RGBW, Pan/Tilt, Color temperature correction, Dimmer Curve, Dimmer, color macro, Pan/Tilt fine, Patterns
PAN movement: unlimited
TILT movement: unlimited
High Speed Strobe: 0 - 20Hz
Standalone modes: Auto run
Controls: mode, Battery Display, +, -, Value Up, Value Down
Indicators: color LC display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 490W
Power connector: Neutrik PowerCon
Housing material: ABS plastic, metal
Cabinet color: black
Cooling: Convection
Illuminance: 78,000 lx @ 1 m
Luminous flux: 8250lm
Width: 480mm
Height: 585mm
Depth: 261mm
Weight: 19kg

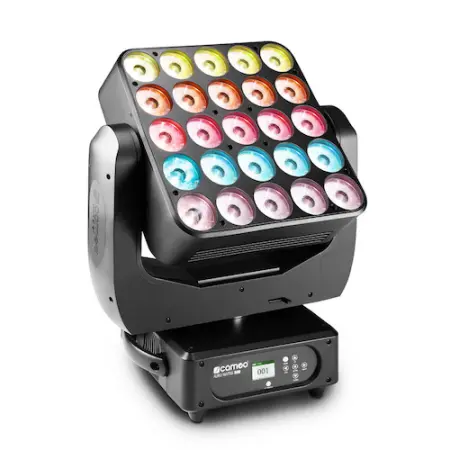

Cameo Auro Matrix 500 (Cameo Lighting CL-AM500)
