Based on PreSonus' StudioLive AI-series engine and controlled with powerful, battle-ready UC-Surface touch software for Mac, Windows, and iOS, their StudioLive RML16AI digital rackmount mixer (RM) is scalable and compact. This feature-packed product provides 16 inputs that include recallable XMAX Class A preamps, 8 line outs, 3 main outs (left, right, and mono/center), 32 internal channels and 25 buses; 96 kHz operation; a 52 x 34 FireWire 800 recording interface, and extensive signal processing. It's designed for both live-sound mixing and studio recording, plus its Active Integration technology includes direct Wi-Fi and Ethernet networking. Additionally it comes with tightly integrated Capture recording software with true Virtual Soundcheck mode, Studio One Artist DAW for Mac and Windows, plus a Nimbit account for online music promotion and distribution.

Features:
Fully recallable mixer
(16) locking XLR inputs with recallable XMAX Class A mic preamps and +48Vphantom power
(8) XLR line outputs on the front, mirrored on rear-panel DB25 jack
(3) XLR main outputs (left, right, mono) with analog trim pots
(16) LED meter grid
(32) internal channels
(25) mix buses
(16) aux mix buses
(3) main mix buses (left, right, mono)
(4) internal FX buses (2 reverb, 2 delay)
Stereo solo bus
Fat Channel signal processing on all input channels and all buses, with4-band parametric EQ, compressor, gate, limiter, and more
52 x 34 direct digital FireWire recording interface
UC-Surface battle-ready, live mixing, and control software
Designed specifically for live sound mixing
Multiplatform support for Mac, Windows, and iPad
Windows 8 multi-touch-compatible for large touchscreen mixing
Contextual-based navigation for quick, intuitive access to all mixing functions
Compatible with free QMix-AI personal monitoring control app foriPhone/iPod touch
Complete solution: Includes Capture live-recording software and Studio OneArtist DAW for Mac and Windows, and Nimbit account for online music promotionand distribution.
USB jack and included Wi-Fi LAN adapter provides wireless control
(2) FireWire S800 ports, 1 Ethernet control port, and S/PDIF digitaloutput
Up to 96 kHz operation
Front-panel Mute All button temporarily mutes all inputs and outputs
Stereo tape input (RCA jacks)
Headphone output with volume knob and selectable source
+48V Meters button to display phantom power assignment on the meter grid
1x1 MIDI interface
3U rackmount
Extensive library of tutorials and downloads

Specifications:

Microphone Preamp:
Input Type: XLR Female, balanced, locking
Frequency Response to Direct Output (at unity gain): 20 Hz - 40 kHz, +/- 0.5 dBu
Frequency Response to Main Output (at unity gain): 20 Hz - 20 kHz, +/- 0.5 dBu
Input Impedance: 1 kOhm
THD to Main Output (1 kHz at unity gain): 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (+/- 1 dB): 0 dB to +65 dB
Maximum Input Level (unity gain): +22 dBu
Phantom Power (+/- 2 VDC): 48 VDC, switchable per channel

Tape Inputs:
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu

Main Outputs:
Type: XLR Male, balanced
Rated Output Level: +24 dBu
Output Impedance: 100 Ohms

Mix Outputs:
Type: XLR Male, balanced
Rated Output Level: +24 dBu
Output Impedance: 100 Ohms

Headphone Output:
Type: ¼" TRS Female, active stereo
Maximum Output: 120 mW/ch. @ 60 Ohm load
Frequency Response: 20 Hz – 20 kHz (+/- 0.5 dB)
THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
System Crosstalk:
Input to Output: -90 dB (Ref = +4 dBu 20-20 kHz, unwtd)
Adjacent Channels: -87 dB (Ref = +4 dBu 20-20 kHz, unwtd)

Noise Gate/Expander:
Threshold Range: -84 dB to 0 dB
Attack Time: 0.02s to 500 ms / 0.5 ms
Release Time: 0.05s to 2s
Expander Attenuation Time: 2:1 (fixed)
Noise Gate Attenuation Range: -84 to 0 dB
Key Filter: 2nd-order, resonant bypass; Q=0.7
Key Listen: Off, 40 Hz to 16 kHz

Compressor:
Threshold Range: +56 dB to 0 dB
Ratio: 1:1 to 4:1
Attack Time: 0.2 ms to 150 ms
Release Time: 40 ms to 1,000 ms
Auto Attack and Release:  Attack = 10 ms, Release = 150 ms
Curve Types:  Hard and Soft Knee

Limiter:
Threshold: -56 dB to 0 dB / -28 dBFS
Ratio: inf:1
Attack: 20 ms
Hold: 10 ms
Release: 20 ms

Parametric EQ:
Type: 2nd-order shelving filter
Low (Lowpass or Bandpass): 36 to 465 Hz, +/- 15 dB
Low Mid (Bandpass): 90 Hz to 1.2 kHz, +/- 15 dB
High Mid (Bandpass): 380 Hz to 5 kHz, +/- 15 dB
High (Highpass or Bandpass): 1.4 kHz to 18 kHz, +/- 15 dB
Q (sweepable for each band): 0.1 to 4 / Low Q=0.55, HiQ=2.0

Graphic EQ:
31-Band 1/3-Octave Controls: Center frequencies (Hz):
20, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1k, 1.3k, 1.6k, 2k, 2.5k, 3.2k, 4k, 5k, 6.4k, 8k, 10k, 13k, 16k, 20k
Each band has a constant Q.
Gain/Attenuation:  +/- 15 dB

Digital Audio:
ADC Dynamic Range: 118 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 118 dB (A-wtd, 48 kHz)
FireWire: S800, 800 Mb/s
S/PDIF Output: RCA Female
Internal Processing: 32-bit, foating point
Sampling Rate: 44.1, 48, 88.2, 96 kHz
A/D/A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu

Clock:
Type: JetPLL™
Jitter: < 20 ps RMS (20 Hz - 20 kHz)
Jitter Attenuation: > 60 dB (1 ns in, 1 ps out)

Power/Environmental:
Connector: IEC
Input-Voltage Range: 90 to 240 VAC
Power Requirements (continuous): 200W
Recommended Ambient Operating Temperature: 32° to 104° F (0° to 40° C)
Physical:
Dimensions (H x W x D): 5.25" x 19" x 10.5" (13.34 x 48.26 x 26.67cm)
Weight: 19 lbs. (8.62 kg)

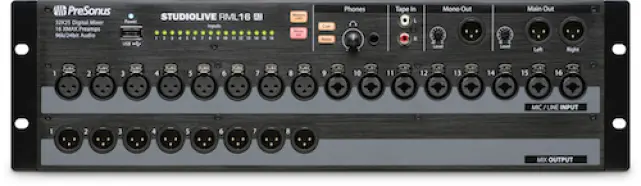

Presonus RML16 AI (PreSonus StudioLive RML16 AI)
