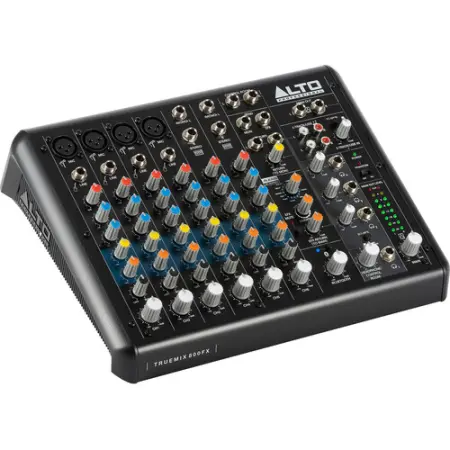

Simple, Intuitive Analog Mixer for Nearly Any Application
Ideal for live sound reinforcement in small venues, band practices, and home or project studio recording, the TrueMix 800 from Alto Professional is an 8-channel analog mixer with a portable form factor, stereo USB recording functionality, and 16 Alesis FX with a dedicated return channel. Four mic preamps and phantom-powered XLR inputs are provided, along with Hi-Z instrument inputs as well as two stereo line input channels for keyboards and similar sources, all sporting 2-band shelving EQ control, pan, volume, gain, monitor, and EFX controls.
The TrueMix 800 also includes an RCA-based 2-track input with a dedicated gain knob as well as a 2-track RCA output, and you can utilize two buttons to either send 2-track/USB input to the main stereo 1/4" output, or to the 1/4" headphones outputs. A convenient stereo Bluetooth channel is also provided for streaming audio directly from smart devices. This mixer includes a power supply and a USB-B to USB-A data cable to get you started.



Subtly Versatile I/O
The TrueMix 800 FX sports just the right amount of I/Os for its size, easily accommodating home recording or live sound reinforcement in small spaces.
Four XLR inputs with low-noise mic preamps, plus a high-impedance 1/4" instrument input on each channel
Two channels of stereo, balanced 1/4" input with the same EQ, gain, pan, monitor, EFX, and volume controls as channel 1 and 2
A balanced 1/4" stereo pair for the main output, ideal for monitor speakers or PA systems
One 1/4" stereo pair control room output
Stereo 1/4" FX send and return with dedicated level controls
RCA 2-track input and output, unbalanced
Four 1/4" headphone outputs
USB-B terminal for stereo digital recording and playback

Portable, Compact Form Factor
The chassis of the TrueMix 800 FX is low-profile and portable, easy to place on any desktop or to take with you to gigs. Large enough to handle a wide range of applications, but compact and light enough for relatively easy transport, the TrueMix 800 FX is a highly flexible mixing console.

16 Alesis Multi-FX
The TrueMix 800 FX includes 16 different Alesis FX to liven up any live performance or recording. FX types include chorus, flanger, an assortment of high-quality delays and reverbs, and three different combination FX.
Two vocal-specific reverb presets are also included for simulating rooms with different delay times. Each effect can be adjusted with a EFX variation knob, and you can also adjust the FX level per channel with dedicated EFX send knobs.


USB Recording
The USB port allows the TrueMix 800 FX to also be used as a 2-channel interface along with its mixing duties. Stereo recording to a computer (Windows or macOS) is quick and simple thanks to class-compliant operation, and you can playback your multitrack productions from your DAW as well, allowing you to monitor through your headphone jack or studio monitors. A dedicated Bluetooth channel is also provided, supporting feedback-free phone pairing by utilizing mix-minus technology.

FEATURES:

For Live Sound and Project Studios
4 Mic Preamps with XLR & Phantom Power
Two Stereo 1/4" Channels
RCA 2-Track Input and Record Out
Two-Band EQ on Each Channel
Bluetooth 5.0 Stereo Channel
16 Built-In Alesis FX with FX Return
USB for Stereo Record/Playback
2-Track I/O Source/Destination Selection
Includes Power Supply and USB Cable

SPECIFICATIONS:

Mixer
Number of Analog Input Channels 6 (4 Mono / 2 Stereo)
Number of Mic Preamps 4
Analog Output Channels 1 x Stereo Master Output
4 x Stereo Headphone Output
1 x Stereo Tape/Record Output
1 x Stereo Control Room/Monitor Output
1 x Mono Aux Send Output
Mix Routing 2 x Stereo Main Mix per Main Mix Channel (LCR Main Mix Combines Stereo and Mono Main Mixes)
Faders & Level Adjustment 7 x Channel Knob
1 x Master Knob
3 x FX Knob
Meters Main Meter:
1 x 8-Segment LED
Meter Range Main Meter:
-30 dB to +6 dB Peak/Clip
Signal Processing
Gain/Trim Range XLR Mic Input:
0 dB to +50 dB
1/4" Line Input:
15 dBu to 35 dBu
1/4" Stereo Line Input:
-20 dBu to -20 dBu
Input Polarity Fixed
Dynamic Processing None
Sidechain Filters None
EQ 2-Band Shelving
EQ Parameters High: ±15 dB at 12 kHz (Shelving)
Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ None
Solo/Mute None
Channel Output/Source Monitoring AFL, Insert Return
Built-In Effects Yes
Digital Audio
Bit Depth AD/DA Conversion:
24-Bit
DSP 20-Bit
Performance
Frequency Response 20 Hz to 22 kHz ±1 dB
Max Input Level XLR Mic Input:
70 dB (To Main Out)
XLR Mic Input:
80 dB (To Phones Out)
1/4" Line Input:
60 dB (To Aux Send)
Headphone Output Power 1/4": 160 mW into 32 Ohms
I/O Impedance XLR Mic Input:
3.9 Kilohms (Balanced)
Input:
> 10 Kilohms
1/4" Aux Output:
1 Kilohms (Unbalanced)
Output:
120 Ohms
Crosstalk Adjacent Inputs:
-80 dB at 1 kHz
Input to Output:
< -75 dB at 1 kHz ((Stereo L/R, Channel 1, Panned Hard Left or Right)
SNR > 110 dB (All Inputs)
THD+N 0.005% (+4 dBu, at 1 kHz)
Connectivity
Analog Inputs 4 x XLR 3-Pin Balanced Mic Input
4 x 1/4" TRS Balanced Line Input (2 Stereo Pairs)
4 x 1/4" TRS Hi-Z Input
2 x 1/4" TRS FX Input (1 Stereo Pair)
2 x RCA Coaxial Unbalanced 2-Track Input (1 Stereo Pair)
Analog Outputs 2 x 1/4" TRS Balanced Main Output (1 Stereo Pair, Post-Fader)
2 x 1/4" TRS Control Room Output (1 Stereo Pair, Post-Fader)
2 x 1/4" TRS FX Output (1 Stereo Pair)
4 x 1/4" TRS Stereo Headphone Output (Post-Fader)
2 x RCA Coaxial Unbalanced Record/Tape Output (1 Stereo Pair, Post-Fader)
Phantom Power +48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O None
MIDI I/O None
USB 1 x USB-B (2-Track Record, Audio Playback)
USB I/O Capacity 2 x Input / 2 x Output
Bluetooth 5.0
Mobile App Compatible No
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Recording
Max Multitrack Recording 2 Tracks
Compatibility
OS Compatibility Windows 10
Windows 11
macOS
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Required Hardware USB 2.0 Port, USB Cable
Power
AC Input Power None
Power Supply Output 18 VDC at 1.2 A (Included)
Power Consumption 21.6 W
Current Consumption 1.2 A
Physical
Rack Mountable No
Dimensions 12 x 9.4 x 3.1" / 30.5 x 23.8 x 7.9 cm (Desk-Mounted)
Weight 4.5 lb / 2 kg
Packaging Info
Package Weight 5.47 lb
Box Dimensions (LxWxH) 14.7 x 13.5 x 6.6"

Alto Professional TrueMix-800FX (Alto 8-Channel Analog Mixer with USB)
