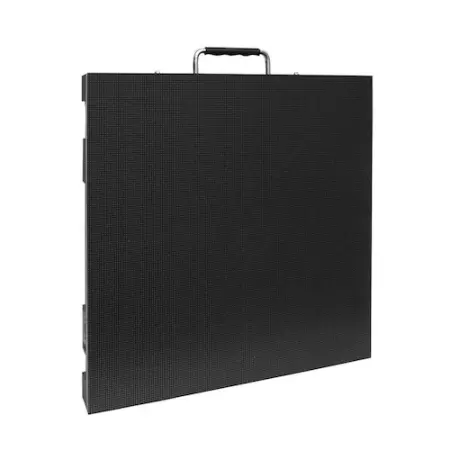

The AV4IP is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 4.81mm with a configuration of a 3-in-1 RGB SMD1921 LEDS. The panel IS IP65 outdoor rated. The brightness is 4000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The AV4IP includes iTrue 1 powerCon In/Out and IP65 etherCON In/Out water proof connections. This panel also features a Novastar receiving card.

The AV4IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

Features:

• 4.81mm pixel pitch high resolution video panel
• Outdoor rated: (IP65 front, IP54 back)
• SMD1921 3-IN-1 RGB LEDs
• NITS: 4,000
• Pixel Count:  104x104
• Quick release power supply / receiving card module
• True1 powerCON In & Out
• IP65 etherCON In & Out
• Novastar receiving card
• Dimensions: 19.7" x 19.7" (500x500mm) panel size
• Flight Case: AV3FC (AV3095): Flight Case - fits 8 AV4IP Panels
• Rigging Bar: AV3RB!

Specifications:

Pixel Pitch: 4.81mm (0.19”)
• LED Configuration: 3-in-1 SMD1921 LED
• Pixel Density: 104x104; 43264 (dot/m2)
• Panel Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm
• Module Quantity: 2
• Module Size: 250 x 500mm
• Module Resolution: 52 x 104 pixels
• Panel Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 4000 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Gray Scaler: 14-bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit

POWER SUPPLY:
• Input Voltage: 100~240V 50-60Hz
• Max. Power Consumption: 180W/per panel
• Ave. Power Consumption: 60W/per panel
• Connections Power/Data: Power = True1 powerCON In/Out; Data = IP65 etherCON In/Out

CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/16
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:
• Operating Temp / :  Fahrenheit: -14° + 122° / Celsius: -10° + 50°
• Humidity: 10-90% (No Condensation)
• Operating Life / MTBF: @ 50,000 Hours
• Protection Level: IP65 Front and IP54 Back
• Out of Control Rate: <0.02%
• Listings:  cETL, CE, FCC Class A

OPTIONAL ACCESSORIES:
AV3FC (AV3095): Flight Case - fits 8 AV4IP
AV3RB1 (AV3070): Rigging Bar - Holds up to 15 AV4IP vertically
AV3FWA (AV3111): Rear Support Bracket
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar NOVA PRO HD: Video Processor
Media Master Express 4: Video Software
GrandVJ 2.0: Video Software

ADJ AV4 IP video panel (American DJ AV4127)
