The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL12H incorporates a lime-infused HEX LED with twelve (12) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

FEATURES:

Linear Color Temperature Control (2,300K to 9,900K)
Smooth RGBAL+UV color mixing
Horizontal Magnetic Alignment feature (Built-In)
Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
RDM Compatible

SPECIFICATIONS:

Fixture Type
Linear/Bar Light
Light Source
12x Color/UV LED - 20 W
Colors
Blue, Green, Lime, Red, Ultraviolet
Beam Angle
17°
20° (with Filter)
Control Protocols
DMX512, Internal
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
61 W
Mounting
Mounting Bracket
Light
Fixture Type
Linear/Bar Light
Light Source
12x Color/UV LED - 20 W
Expected Lamp Life
50,000 Hours
Colors
Blue, Green, Lime, Red, Ultraviolet
Beam Angle
17°
20° (with Filter)
Shutter / Strobe
Electronic
Dimming
Electronic, 0 to 100% with 6 Dimmer Modes
Performance
Operating Modes
Automatic, Program, Sound-Active, Static Color
Macros / Programs
64x Color Macro
Effects
Strobe
Gobos
No
Refresh Rate
1.9 kHz
Control
Control Protocols
DMX512, Internal
DMX Channel Modes
7 Mode(s):
6 / 11 / 13 / 16 / 36 / 43 / 46-Channel
Display / Controls
OLED / 4-Button
Remote Control
IR Remote (with Included Equipment)
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Wireless
No
Wireless Range
32.8' / 10 m (with Optional Equipment)
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x powerCON
Output: 1x powerCON
Plug Type: NEMA 5-15
Cord Length: 5.9' / 1.8 m
Power / Current Consumption
61 W
Power Linking
17 Units at 120 VAC
32 Units at 230 VAC
Environmental
Environmental Protection
No
Physical
Mounting
Mounting Bracket
Included Accessories
1x Power Cable
1x Filter
Duty Cycle
No
Exterior Color
Black
Certifications
CE, cETLus, FCC
Dimensions
42.6 x 4.2 x 2.96" / 1082.04 x 106.7 x 75.18 mm
Weight
7.5 lb / 3.4 kg
Packaging Info
Package Weight
9.68 lb
Box Dimensions (LxWxH)
43.8 x 6.8 x 4.8"

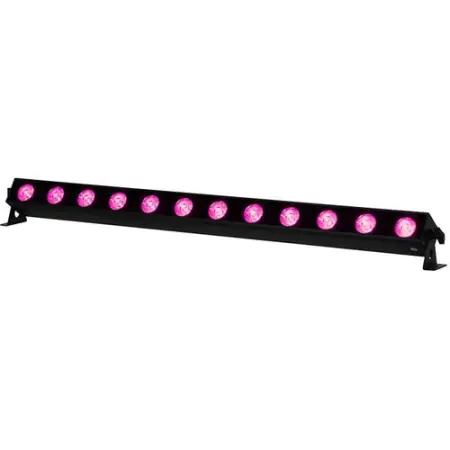

ADJ UBL12H (American DJ UBL12H Bar)
