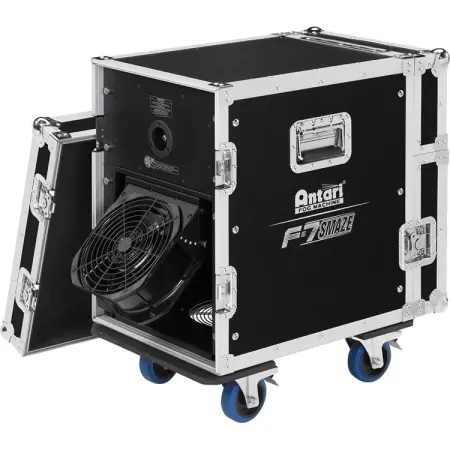

Arena Fog/Faze Hybrid Machine

Designed for large venue, the F-7 Smaze machine offers the all-in-one solution for your needs.

With it switchable Fog and Faze mode, the machine is capable produces strong powerful fog or thin layer of haze to fill up the venue in mins.

Equipped with our latest air pump technology enabling self-cleaning feature also produce fine dry fog.  The built in adjustable fan allows you to direct the fog easily.

Versatile control option includes Wireless DMX, DMX and stand alone to meet any control needs. Designed into a road case make this tour ready unit to be transport at ease.

Features:

1. All in one Fog + Faze machine, switch  between  fog and faze effect
2. Tour ready rugged design
3. Built-in high velocity fan with adjustable output angle
4. Self cleaning function
5. Built-in Wireless DMX
6. 3 channel DMX control (Mode, Fog/Faze volume, Fan volume)
7. Auto sensing frequency

Specifications:
Voltage : U.S. version : 120 Volt
                  Europe version : 230 Volt
                  U.K. version : 240 Volt
                  Japan version : 100 Volt
Power Consumption：1,650 W
Initial Heat-Up Time：6 mins
Fluid Consumption Rate：140 ml/min (Fog Mode)
                                             28 ml/min (Faze Mode)
Tank Capacity：5 liters
Control Options：On-Board Control Panel、DMX、W-DMX
DMX Channel Occupied：3 Channels
Channel 1：Fog / Haze Mode
Channel 2：Output Volume
Channel 3：Fan Volume
Weight：52.5 Kg
Dimensions (mm)：L 710  W 412  H 710


Recommended Fluid:
Antari FLH-4
Alternative Option:
Antari FLG-4
Antari FLZ-4

Elation F-7 Smaze (Antari ANF007)
