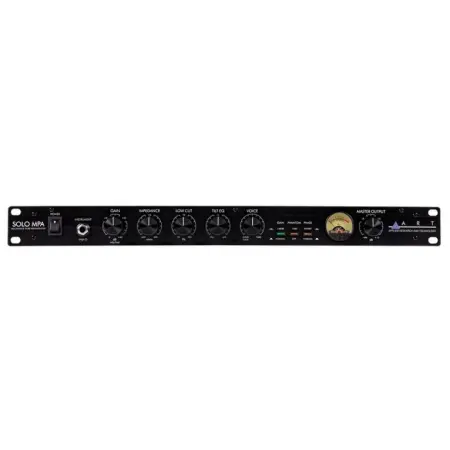

The ART Solo MPA Multivoice Tube Preamplifier picks up where builtin preamps drop off. Combining the best of both worlds, the Solo MPA
allows users to blend between a pristine low-noise/low-distortion solid
state transistor circuit and a warmer Class-A tube mic preamp. Along
with the flexible EQ controls, users can voice the Solo MPA to create
their own signature sound.
Featuring 48V phantom power and a variable input impedance control,
users can tailor the Solo MPA to suit their microphone of choice, be it
a high-quality dynamic, a studio grade condenser or a low-level ribbon.
A Low-Cut control allows vocals to be sculpted for clarity while the Tilt
EQ can be used to emphasize high presence or low-end warmth.

FEATURES:

Adjustable input impedance (600 to 80K ohms).
Flexible Tilt EQ
Tunable Lowcut Filter
Variable Voice Tube/Solid State Control
Front accessible meter trim
Discrete class A FET input microphone preamplifier
Low noise at low gains
Low THD
Wide frequency response
Front mounted Instrument/DI Input
Very high input impedance
+4dBu/-10dBV output level selection


SPECIFICATIONS:

Frequency Response 15 Hz to 50 kHz (+0, -1dB)
Dynamic range >110dB (“A” weighted)
CMRR >90dB
THD <0.005% (typical)
Equivalent Input Noise -129dBu (XLR, “A” weighted)
Maximum Input Level +19dBu (XLR)
Maximum Instrument Input +17dBu
Input Impedance 600-80K ohms adjustable (XLR),
>800k ohms (Instrument)
Maximum Output Level +27dBu (XLR)
Output Impedance < 47 ohms (XLR)
Maximum Gain 70dB
Meter Calibration 0VU = +4dBu output (+4dBu mode)
0VU = -10dBV output (-10dBV mode)
Low Cut Filter single pole, 10-200Hz adjustable
Tilt EQ +/- 12dB adjustable
Power Requirements 100-120V 60 Hz / 220-240V 50Hz
rear mounted switch and IEC connector
Dimensions: (HxWxD) 1.75-inch x 19-inch x 6.0-inch
4.45 cm x 48.3 cm x 15.2 cm
Weight 5.6 lb / 2.5kg
Box Dimensions (HWD, inches) 5 x 20.4 x 7.44
Box Dimensions (HWD, cm) 12.6 x 51.8 x 18.9

ART SOLOMPA (Art SOLO-MPA)
