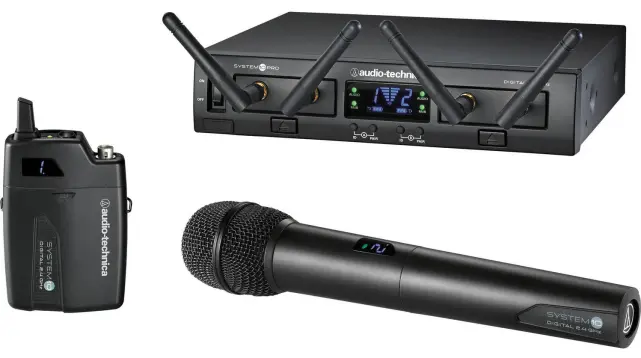

Audio-Technica ATW-1312 System 10 PRO



         This item is in stock!






$779.00 new
CALL or VIP REGISTRATION (free) new
Warranty





or $71/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

Audio Technica ATW-1312  (Audio-Technica atw1312)

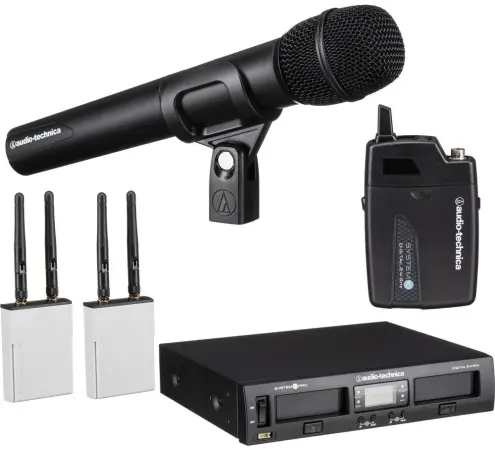

Includes

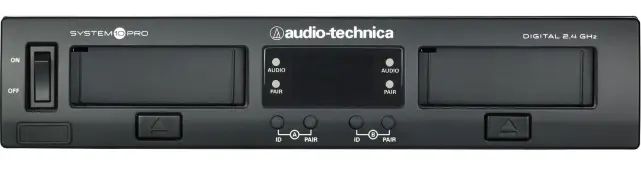

ATW-RC13 Rack-mount receiver chassis

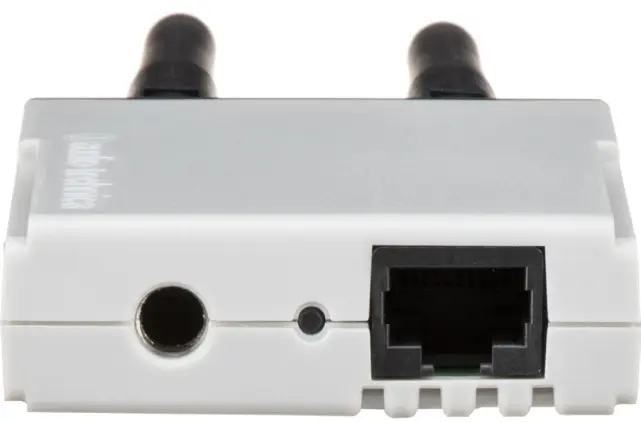

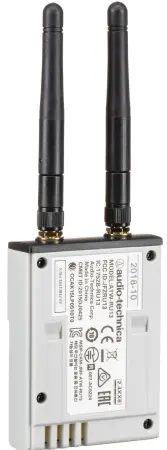

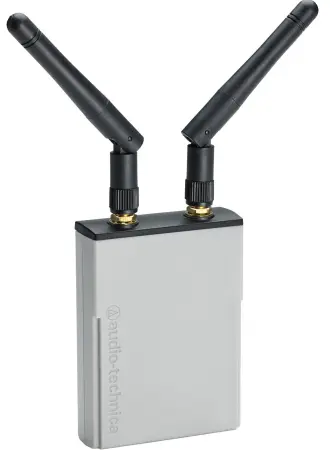

ATW-RU13x2 receiver unit

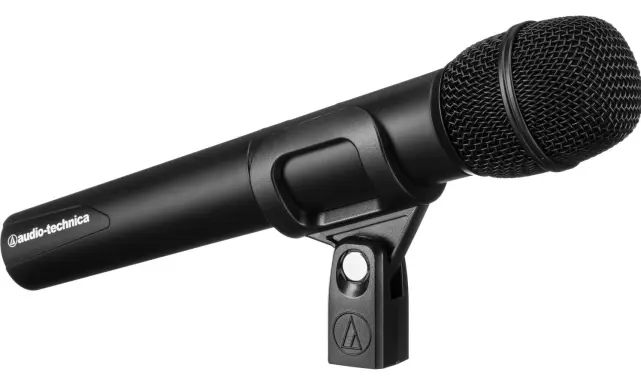

ATW-T1002 handheld dynamic unidirectional microphone/transmitter

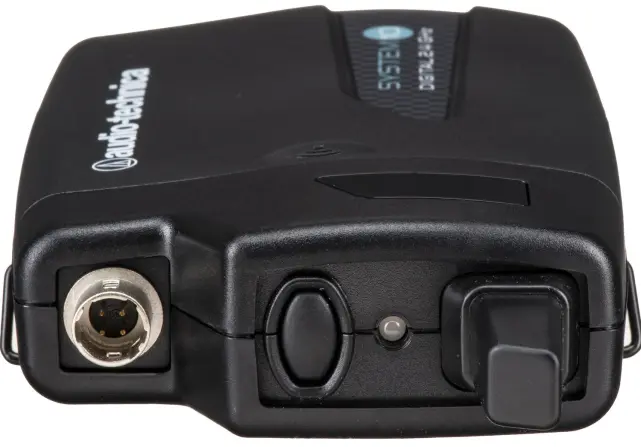

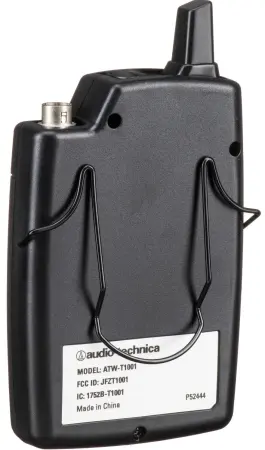

ATW-T1001 UniPak transmitter


Audio-Technica's ATW-1312 System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.

Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

Each System 10 PRO Rack-Mount system includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two ATW-T1001 UniPak body-pack or ATW-T1002 handheld transmitters, or one of each. Both the receiver chassis and transmitters feature easy-to-read displays.

Features:

Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
Operates in the 2.4 GHz range - completely free from TV interference
Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
Up to five chassis (ten receiver units) can be linked and used simultaneously
Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and setup
Three levels of diversity assurance: frequency, time & space
Ground-lift switch helps eliminate audible hum caused by ground loops

Specifications:

Operating Frequencies: 2.4 GHz ISM band
Dynamic Range: >109 dB (A-weighted), typical
Total Harmonic Distortion: <0.05% typical
Operating Range: 60 m (200') Open range env. with no interfering signals
Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Frequency Response: 20 Hz to 20 kHz Depending on microphone type

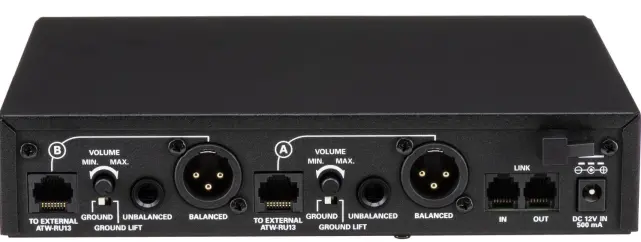

RECEIVER SPECIFICATIONS
Receiving System: Diversity (frequency/time/space)
Output Connectors: Remote Receiver Connector: RJ45; Link Connector: RJ12
Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions: 209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
Net Weight: 940 grams (33.2 oz)
Accessory Included: Power supply
Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

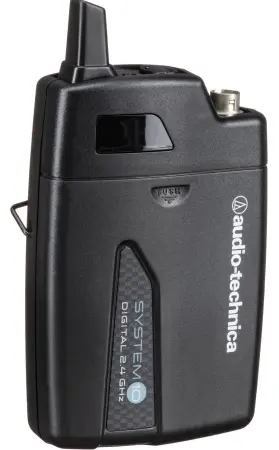

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output: 10 mW
Spurious Emissions: Following federal and national regulations
Input Connections: Four-pin Locking Connector; Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries: Two 1.5V AA not included
Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight: 100 grams (3.5 oz) without batteries
