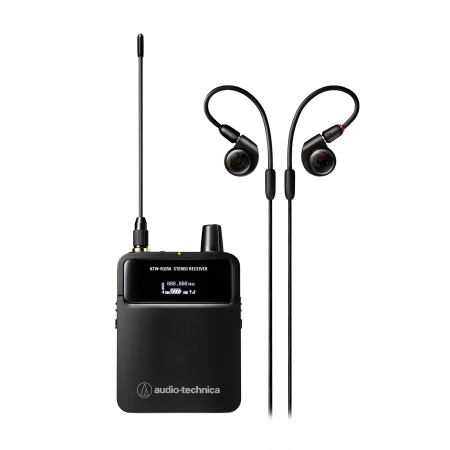

Body-pack receiver for 3000 Series In-Ear Monitoring System (ATW-3255).

FEATYRES:

Durable wireless in-ear monitor system delivers high-quality sound and stable RF
Ideal for use in houses of worship and performance venues
Optimized internal digital signal processing provides exceptional stereo separation
Wide UHF tuning bandwidth of 138 MHz for maximum versatility in an increasingly congested RF environment; available in frequency bands DF2 (470 – 608 MHz) and EG2 (580 - 714 MHz)
Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
Offers network monitoring and control via Wireless Manager software
A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
Stereo or mono operation with pan/personal mix controls
Receiver is equipped with an efficient headphone amp to ensure clear, natural sound quality
Custom audio settings include EQ, limiter, gain control and balance
Receiver’s antenna diversity improves RF stability
Included ATH-E40 professional in-ear monitor headphones feature propriety dual phase push-pull drivers for exceptional accuracy and clarity
Transmitter is equipped with balanced XLR inputs and loop output, plus network port

SPECIFICATIONS:

Overall System
Operating Frequencies Band DF2: 470.125 to 607.875 MHz

Please note that some frequency bands might not be available in your territory or could come with a
limited tuning bandwidth/transmitting power due to local regulations.
Minimum Frequency Step 25 kHz
Modulation Mode FM
Nominal/Peak Deviation ±34 kHz nominal / ±45 kHz peak
Frequency Response 40 Hz to 14,100 Hz
Stereo Separation 75 dB
Operating Range 90 m (300')
Open range environment with no interfering signals
Dynamic Range >90 dB, A-weighted, typical
Total Harmonic Distortion <0.2% (at 1 kHz, +4dBu input)
Maximum Simultaneous Use (recommended) 49 ch per band
For assistance with multi-band operation or other frequency coordination issues, contact your local Audio-Technica dealer.
Notes For product improvement, the product is subject to modification without notice.
IEM Transmitter
RF Output Power High: 50 mW, Low: 10 mW (switchable) at 50 ohms
May differ depending on the country or region in which you live.
Input Connection XLR-F type×2
(Pin1: GND, Pin2: Hot, Pin3: Cold)
Maximum Input Level XLR-F type: +24 dBu (at 0 dB sensitivity)
Output Connection 6.3 mm (1/4") TRS×2
(Tip: Hot, Ring: Cold, Sleeve: Ground）
Network 100BASE-T
Network Port RJ-45
Power Supply 100 to 240 V AC (50/60 Hz) to 12V DC 1 A (center positive) switched mode external power supply
Antenna Output BNC-type, 50 ohms
Dimensions 210 mm (8.3")×191 mm (7.5")×43.4 mm (1.7") (W×D×H)
Weight 1,100 g (39 oz)
(without accessories)
Included Accessories AC adapter
Rack-mount (large, small)
Flexible UHF antenna

Audio Technica ATW-R3250 DF2 Band (Audio-Technica ATW-R3250 Wireless In-Ear Monitor Receiver)
