The T3 Lighting Console from Avolites allows for professional control of dynamic light shows in a portable package. The control surface sports an array of buttons, encoders, and sliders for precise and comfortable operation of your lighting setup. Included is a soft carrying case to transfer these powerful DMX control features from venue to venue with ease.

Uncompromised Features

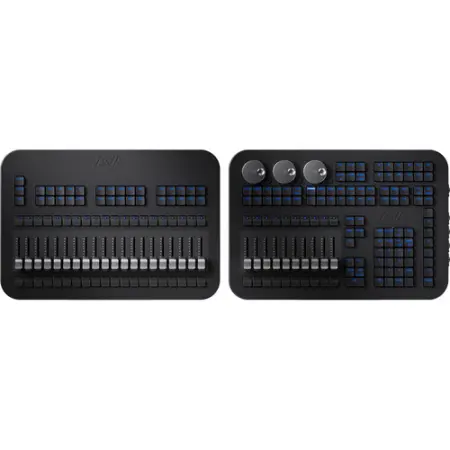

The T3 console provides a tactile interface for optimized control of your Titan lighting ecosystem. The panel features ten faders, three encoders, and 96 backlight keys equipped with low-profile Cherry MX switches. These physical controls adjust up to 8192 DMX channels at once via four 5-pin XLR outputs. Signal is delivered via Art-Net, sACN, or DMX512 to manipulate light shows with keyframes, macros, and other automated programs. The available 16 DMX universes may be upgraded to 32 or 64 if needed. The T3 is designed to take full advantage of the expansive possibilities of Avolite's Titan lighting control software, and the interface can be expanded further by linking with additional Avolite control surfaces (available separately).
Professional Lighting Meets Portability

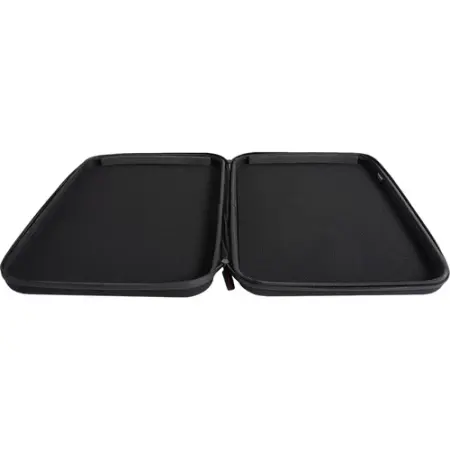

These powerful features are housed in a durable yet lightweight form factor perfect for lighting operators moving from venue to venue. Computer systems with the Titan lighting control software connect to the console via a USB-C connection, which also delivers power to the T3 without any additional cables. Other operators using Titan control interfaces can link together for collaborative control via Avolite's multi-user network. At only two inches thick and weighing in at under seven pounds, the T3 slips easily into a backpack or travels conveniently in the included soft carrying case.

SPECIFICATIONS:

General
Compatibility Avolites Titan
System Requirements CPU: Intel i5 2 GHz / AMD Ryzen 5 3600XT / Benchmark Scores: 6000
RAM: 16 GB
GPU: Minimum Passmark 2000 / Support for Direct X 11.1
Storage: SSD 256 GB (20% Free Space)
OS: Microsoft Windows 10 and Newer
Inputs / Outputs
USB I/O 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Input
Interface 10 x Playback Faders
12 x Macro/Executor Buttons
20 C&K Flash Buttons
3 x Optical Encoder Wheels
96 x Low Profile Backlit Cherry MX Keys
9 x Titan Keys for D9 Layout
DMX Channels Up to 8192 per Device
Up to 32,768 per System
Output Connectors DMX: 4 x 5-Pin XLR
1 x 3-Pin XLR SMPTE LTC
Output ArtNET / S-ACN / DMX512
Power
Power Source USB (Included)
Operating Current 900 mA
Environmental
Environmental Protection None
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 95% (Non-Condensing)
Physical
Material of Construction Aluminum, Steel
Cable Length Not Specified by Manufacturer
Dimensions 15.8 x 10.6 x 2" / 40.2 x 27 x 5 cm
Weight 6.6 lb / 3 kg
8.2 lb / 3.7 kg (Including Case)

Avolites T3 (X-Laser T3 DMX Console)
