Rugged, reliable, affordable power.

The US-5000 two-channel power amp from B-52 Pro Audio is a higher power addition to the popular US series power amps. The basic design has had some years to be tested in the marketplace and the general reviews are stellar. Efficient, great-sounding and above all, reliable, the US series amplifiers are an excellent solution for anyone who needs clean, reliable power in sound reinforcement environment, be it a travelling band, a DJ, a presenter, or a venue with an installed system.

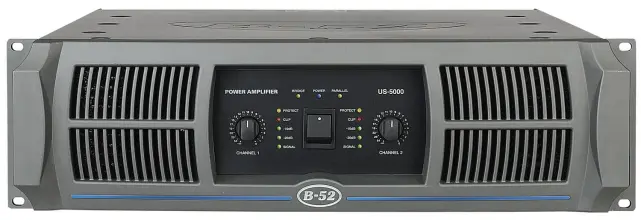

The US-5000 is built on a rugged, heavy gauge 3U steel chassis with a sturdy aluminum front panel. The amplifiers use advanced circuitry and a well-designed PCB layout to ensure quality sound and enhanced reliability. Large dual aluminum heatsinks and an oversized toroidal transformer, combined with comprehensive protection circuitry and dual large variable speed fans provide worry-free and reliable operation in the most demanding environments.

Features:

Up to 5500 watts in densely packed 3U enclosure
Rugged heavy gauge steel enclosure with sturdy aluminum front panel for stability and
increased longevity
High-current toroidal transformers for increased 2-ohm power output
21-position gain control knobs for consistent settings
Selectable STEREO, PARALLEL MONO and BRIDGED MONO modes for flexibility
Front panel LED display: POWER, BRIDGE and PARALLEL LEDs and SIGNAL, -20dB,
-10dB, 0dB, CLIP and PROTECT LEDs for each channel
Protection: Short circuit, output current limiting, thermal, DC offset, turn on/off muting,
RF protection and circuit breaker
Defeatable clip limiters to reduce distortion without sacrificing peak performance
Defeatable 30/50Hz sub-sonic filters to protect speakers and increase headroom
Balanced combo XLR and 1/4" TRS input connectors and link XLR output connectors
Both binding posts and SpeakonTM output connectors
Low-noise cooling fans with continuous variable speed and highly efficient front-to-rear forced air cooling design
Replaceable open cell foam air filters with easy access through front panel
Dimmable blue LED strips on front panel
