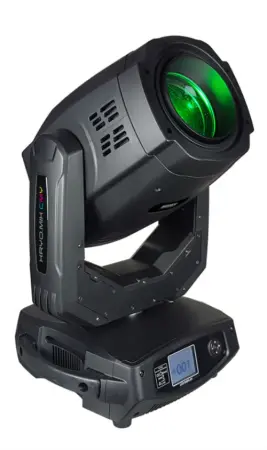

Kryo.Mix™ CMY is powerful 3-in-1 Beam/Spot/Wash moving head that is loaded with advanced optics, mechanics, and electronic technology, all built around an extremely bright 350W discharge lamp. It features a 1.5- 35° zoom that can provide super sharp narrow or wide beam aerial effects with highly saturated colors via its CMY color mixing system.
The advanced CMY color mixing system built into the Kryo.Mix™ CMY consists of 3 separate color wheels with gradual Cyan/ Magenta/Yellow fade, plus 5 carefully selected color filters on each wheel, for a total of 15 static colors + white, which allows users to achieve a wide range of color possibilities.
Other outstanding features of the Kryo.Mix™ CMY include smooth 540/280° pan & tilt movement (8 and 16-bit resolution), dual gobo wheels (#1 rotating, with 12 gobos + open, and #2 with 13 static gobos + open), 12/36-facet rotating prism with auto beam adjustment, motorized zoom and focus, gobo shake, frost filter, and 1-18Hz cycle strobe for an endless amount great beam effects. 21/23/28-channel DMX channel modes are also available and its operating modes include master/slave, auto mode, and sound active mode.
Kryo.Mix™ CMY fixtures offer an easy-to-use 5-button LCD control panel, dual side handles for easy transportation, powerCON® compatible power input connection, 3/5-pin DMX In/Out jacks, and dual quarter-turn “Omega” quick connect type clamp brackets for secure truss mounting, making this one incredible 3-in-1 Beam/Spot/Wash moving head fixture.
Features:
350W Beam/Spot/Wash 3-in-1 Moving Head
Light Source: YODN R17 350W, 8000K
CMY Color Mixing and 15 Colors (+White)
1.5°- 35° Fast Linear Zoom
2* Gobo Wheels w/Bidirectional Rotation + Shake
Rotating 12/36-Facet Prism
Electronic Focus
1-18/second Strobe
5-Button LCD Control Panel
Pan: 540º/ Tilt: 280º (8-16 Bit Resolution)
Variable Electronic Dimmer (0 – 100%)
Color+Gobo+Prism+Strobe Automatic Operation
21/23/28-channel DMX Modes
Power
100-240VAC, 50-60 Hertz
Power Consumption: 393W, 3.35A, PF: .98
Optical
Light Source: 350W YODN R17
Beam Angle: 1.5°- 35°
Color Temperature: 8000K
Luminous Intensity: 43,292 Lux @ 2m (wide), 130,947 Lux @ 5m (narrow), 7,664 Lux @ 5m (wide)
Movement Range
Pan: 540 degree (8-16 Bit Resolution)
Tilt: 280 degree (8-16 Bit Resolution)
Control
Protocol: USITT DMX-512
21/23/28-channel DMX Modes
Standalone, Master/Slave, Auto, Sound Active
3/5-pin XLR Male / 3-5-pin XLR Female
LCD 4-button control panel
