The Flashiest on the Block

Go bold and make a statement with its 80W WW LED and 6 individually-controllable RGB pixel rings for dynamic, contrasting color effects.

Buildable Design

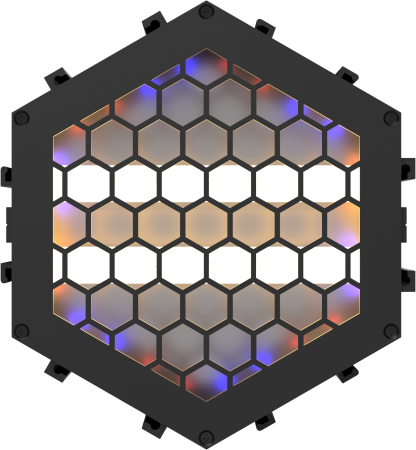

Dream it up and build it out. Nexys Flux is 1 of 3 modular LED fixtures capable of interlocking with one another in any direction - horizontal, vertical or diagonal, thanks to its unique hexagonal shape.

Modular Innovation

Nexys™ Flux is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect in any orientation: horizontally, vertically, or diagonally to form captivating visual arrays. This specific model boasts a vintage ambiance, its 80W, 2000K WW LED acts as a retro strobe/blinder with a broad 120° beam. Meanwhile, its 6-pixel RGB backlight adds dynamic, contrasting color effects.

Loaded With Features

It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner pixel ring groups. Then for ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCONTRUE1 compatible in/out connections.


FEATURES:

Vintage Warm white strobe/blinder + RGB LED backlight effects
Design arrays in any direction (horizontally, vertically or diagonally) with a unique interlocking housing
1 of 3 modular LED fixtures. Interlocks with Nexys™ RGBW and Nexys™ WW

SPECIFICATIONS:

Optical
1x 80W Warm White 2000K LED

24x SMD 5050 RGB 0.5W LEDs (6x4 LED sections)

120° beam angle

213 Lux @ 2.5M

56 Lux @ 5M

Control
Protocol: USITT DMX-512

5-pin DMX in/out

4/8/20-channel DMX

4-button menu with LCD display

DMX512, M/S, auto mode

Power & Current
100-250VAC, 50-60 Hz

Consumption: 83W, 1.1A, PF: .63

PowerCON® TRUE1-compatible in/out

Dimensions
17.9" x 4.9" x 6.8"

5.6lbs

In the Box
Nexys™ Flux fixture, dual mounting brackets, an Omega bracket with quick-lock quarter turn fasteners (clamp not included)

Warranty
2 Year - Extendable

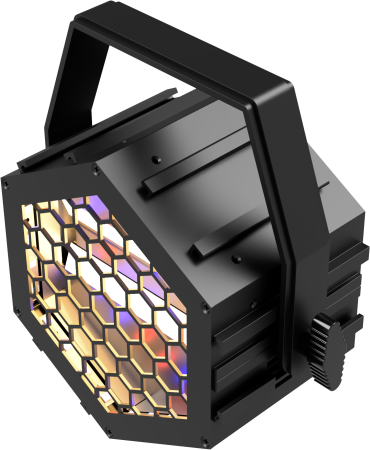

Blizzard Nexys Flux (Blizzard Lighting Nexys™ Flux)
