LED Moving Bar
Designed for exciting, highly creative lighting, the Cameo AURO® BAR 100 produces subtle to rich, saturated RGBW color mixes and three temperatures of white with a line of seven 15 watt quad LEDs. The all-professional moving light's features include two high speed 3-phase motors for infinite pan and tilt, 16-bit resolution for ultra smooth motion and dimming, and with a 3,600 Hz refresh rate it is ideal for TV and video applications.

In addition, the AURO® BAR 100 sports color temperature and automatic positioning correction, a strobe function and single pixel control for amazing chase effects. It is RDM enabled and provides four modes of DMX control. The fixture is Art-Net compatible with automatic FDT bridging to maintain daisy chain operation in case of single device failure. A battery powered 6-button display enables easy offline configuration.

Built for reliable heavy-duty use, the AURO® BAR 100 comes in a rugged compound enclosure with both 3-pin and 5-pin DMX, RJ45 and Neutrik powerCON mains inputs and outputs. The versatile fixture operates on all voltages from 100 - 240 V AC.

Features:

LED Moving Bar with infinite pan and tilt
Two high-speed 3-phase motors
16-bit resolution and 3,600 Hz refresh rate
7 powerful 15 watt quad LEDs
Rich RGBW colors, subtle pastel shades, 3 natural whites
4 DMX modes, RDM capability and ArtNET compatible
Ethernet switch with FDT bridging (failsafe data transfer)
Automatic positioning and color temperature correction
Single pixel control
20 Hz strobe and 4 dimming curves
3- and 5-pin DMX, Neutrik powerCON and RJ45 connectors
Battery powered 6-button display for offline setting

Specifications:

Product number: CLABAR100
Product type: LED Moving Lights
Type: LED Moving Heads
Color spectrum: RGBW
Number of LEDs: 7
LED type: 15 W
Refresh rate: 3600Hz
Dispersion: 4°
DMX input: XLR 5-pin male, XLR 3-pin male, RJ45 Ethernet In (ArtNET)
DMX output: XLR 3-pin female, RJ45 Ethernet Out (ArtNET), XLR 5-pin female
DMX mode: 9-channel, 39-channel, 29-channel, 19-channel
DMX Functions: strobe, Pan/Tilt fine, Pan/Tilt, Colour temperature correction, Dimmer Curve, Dimmer, colour macro, Patterns, RGBW, auto programs
PAN movement: unlimited
TILT movement: unlimited
High Speed Strobe: 0 - 20Hz
Standalone modes: Auto run
Controls: Battery Display, +, -, Value Up, Value Down, mode, Enter
Indicators: color LC display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 140W
Power connector: Neutrik PowerCon
Housing material: metal, ABS plastic
Cabinet color: black
Cooling: Convection
Illuminance: 42000lx @ 1m
Luminous flux: 2300lm
Width: 570mm
Height: 260mm
Depth: 195mm
Weight: 9.5kg

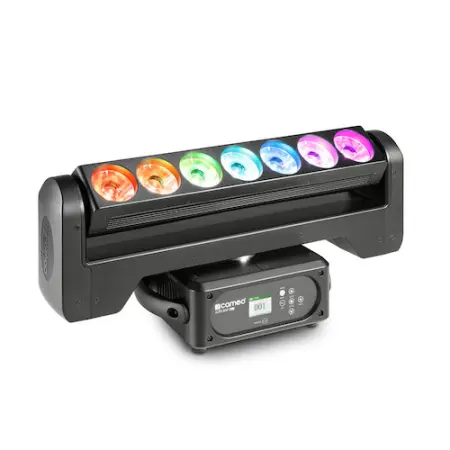

Cameo Auro Bar 100 (Cameo Lighting CL-ABAR100)
