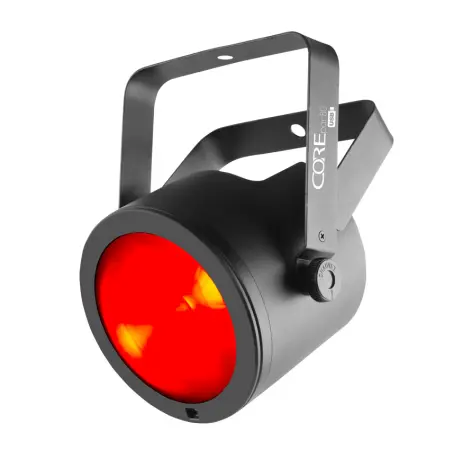

Chauvet COREpar 80 USB (Chauvet USB COB Light)
The Chauvet COREpar 80 USB produces a full spectrum of light with the unsurpassed color mixing of COB (Chip-on-Board) technology and includes a separate magnetic lens to provide the flexibility to go from an ultra-wide wash to a narrow beam in seconds. High frequency LED dimming achieves smooth LED fades and ensures a flicker-free performance in video applications. Multiple control options include DMX, master/slave and sound activation modes as well as wireless control thanks to D-Fi™ USB compatibility. Point-and-shoot operation of static colors and automated programs is also possible with the optional IRC-6 remote control (sold separately). The unit’s robust sit-flat housing features power and DMX outlets on the side. Pick up the Chauvet COREpar 80 USB today!
Chauvet COREpar 80 USB Features:
• COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control
• Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
• Withstand the harshness of traveling from gig to gig with a robust housing
• Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
• Multiple control options include DMX, Master/Slave and Sound-Active modes
• Create customized colors using the built-in LED display
• Achieve smooth LED fading with built-in dimming curves
• Easily transports in the optional CHS-30 VIP Gear Bag
• Compact design easily fits inside sticks of TRUSST®
Specifications:
• DMX Channels: 3 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 1 COB LED (tri-color RGB) 80 W (2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 33 Hz
• PWM Frequency: 2,000 Hz
• Beam Angle: 70° (without lens)
• Beam Angle: 25° (with lens)
• Field Angle: 90° (without lens)
• Field Angle: 40° (with lens)
• Illuminance: 405 lux @ 2 m (without lens)
• Illuminance: 1,360 lux @ 2 m (with lens)
• Power Linking: 7 units @ 120 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 75 W, 1.1 A @ 120 V, 60 Hz
• Power and Current: 72 W, 0.6 A @ 230 V, 50 Hz
• Weight: 4.2 lb (2.0 kg)
• Size: 7.9 x 5.6 x 9.9 in (200 x 143 x 253 mm)
• Optional Controllers: IRC-6
• Approvals: CE
