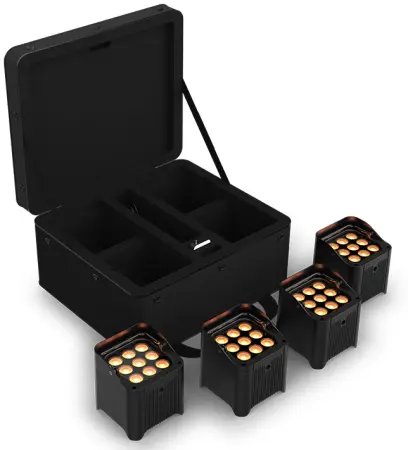

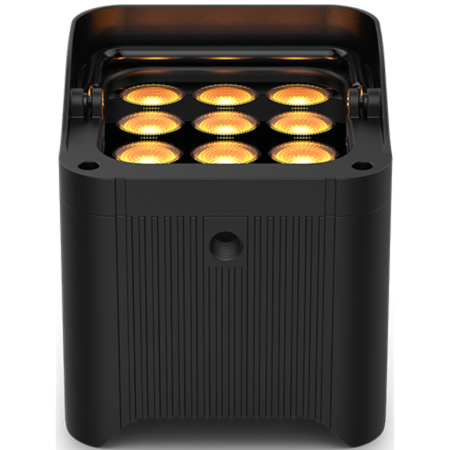

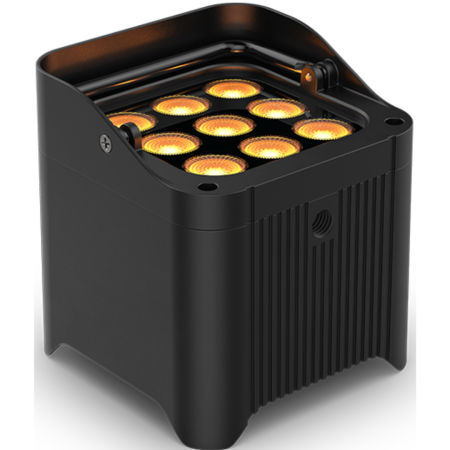

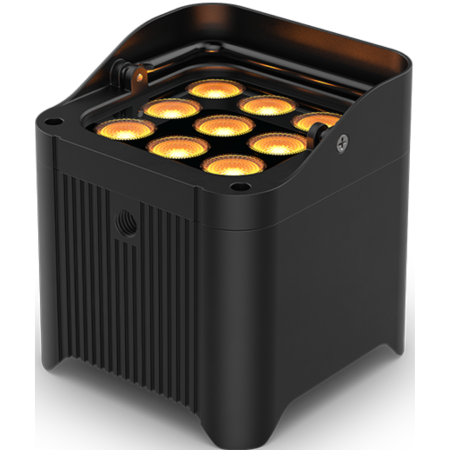

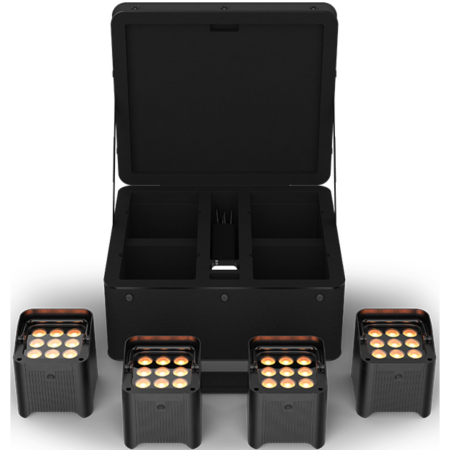

Lighting designers and event coordinators in search of a wireless, battery-operated PAR kit should look no further than the Chauvet DJ Freedom Par Q9 X4, a 4-pack of bright, powerful, and 100% wireless fixtures well suited for special events, weddings, performance halls, and more. Each of the fixture's nine quad colored LEDs (red, green, blue, amber) are rated for 50,000 hours and will provide years of reliable service. An adjustable kickstand enables you to shine light directly where it is needed, while the built-in glare shield prevents light spillage. A magnetic diffuser attaches to widens the coverage area.

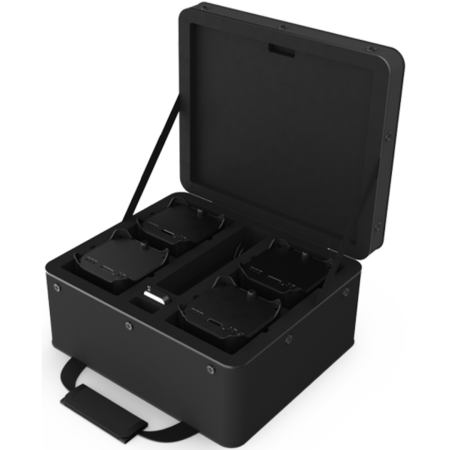

The Freedom Par Q9 includes an integrated D-Fi transceiver to wireless DMX control with 3 control modes (4, 6, 14 channels). The rechargeable battery can be set to specific run times including 3, 5, 8, and 12 hours. Convenient, wireless non-DMX control is available using the optional RFC and RFC-XL remotes and customized colors can be created using the built-in LED display. The compact design allows the fixture to be placed inside trussing. The Freedom Par Q9 X4 ships with a carrying bag, an RFC remote control, and a multi-charger.

Key Features
Complete up-lighting kit with a protective carry bag to keep your investment secure
Control the lights using the included RFC remote that does not require line of sight
Multi-charger saves space when charging multiple fixtures simultaneously
100% TRUE wireless, battery-operated, quad-color (RGBA) LED uplight with built-in D-Fi transceiver
New secondary optics provide perfect color blending with nearly no artifacts
Magnetic diffuser pops on or off with ease and widens the coverage area
Adjustable run times ensure the fixture will last the length of the event
OLED display allows for full-text and to easily change fixture’s settings
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
Adjust the projection angle using the spring-loaded kickstand
Built-in glare shield protects light spillage and eye fatigue
Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry
Achieve smooth LED fading with built-in dimming curves
Compact and lightweight design easily fits inside sticks of truss

SPECIFICATIONS:


Fixture Type PAR
Light Source 9 x Color LED - 6 W / 2.3 A
Expected Lamp Life 50,000 Hours
Colors Red
Green
Blue
Amber
Photometrics 333 fc / 3580 Lux at 6.56' / 2 m
49 fc / 529 Lux at 78.7" / 2 m (with Filter)
Lumen Output 1161 Lumens
Beam Angle 14°
37° (with Filter)
Field Angle 35°
68° (with Filter)
Shutter / Strobe Electronic
Iris No
Zoom Adjustment None
Dimming Electronic, 0 to 100%
Performance
Operating Modes DMX, Primary/Secondary, Sound-Active, Standalone
Macros / Programs Color Fade
Color Macro
Color Mixing
Effects Strobe (Variable Speed)
Strobe Rate 0 to 22 Hz
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 3 Mode(s):
4 / 6 / 14-Channel
Display / Controls OLED / 4-Button
Remote Control D-Fi (with Included Equipment)
RF Remote (with Included Equipment)
Mobile App Compatible No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs None
Wireless Range 600' / 182.9 m
Power
AC Input Power 120 to 230 VAC, 50/60 Hz
AC Power Connector None
DC Input Power 24 VDC
Fuse None
Power / Current Consumption 120 VAC, 60 Hz: 31 W / 0.3 A
230 VAC, 50 Hz: 30 W / 0.2 A
Power Linking None
Approximate Battery Life Up to 3 Hours
Up to 5 Hours
Up to 8 Hours
Up to 12 Hours
Battery Charging Time 3 Hours
Environmental
Environmental Protection None
Physical
Mounting Floor Base, M12 Threaded
Included Accessories None
Duty Cycle None
Exterior Color Black
Certifications CE, UKCA, RoHS, FCC
*as per Manufacturer
Dimensions 4.9 x 4.7 x 4.7" / 12.4 x 11.9 x 11.9 cm (Each Light)
20.7 x 14.6 x 7.2" / 52.6 x 37.1 x 18.3 cm (Case)
Weight 4.6 lb / 2.1 kg (Each Light)
25.6 lb / 11.6 kg

WHAT'S INCLUDED
(4) Freedom Par Q9
(4) magnetic diffusers
Carry bag
RFC
Multi-Charger
Power cord
Quick Reference Guide

Chauvet FREEDOMPARQ9X4 (Chauvet DJ Freedom Par Q9 4-pack)
