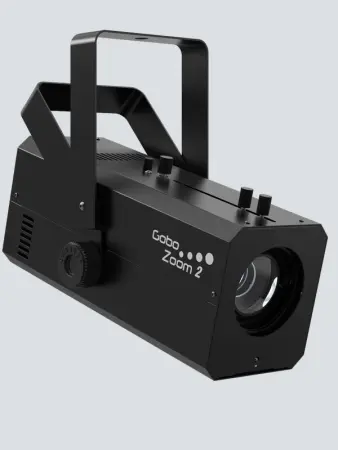

Thrill event guests with customized logos, icons and other designs with Gobo Zoom 2, a high-powered custom gobo projector with a punchy 70 W LED. Proper positioning of gobos is easy with an innovative manual rotation knob that allows fast indexing without gobo removal. Gobo Zoom 2 comes with 10 popular holiday gobos and manual zoom for short-throw or long-throw applications, making it versatile and convenient. The convenience doesn’t stop there. Most functions are accessible with an optional IRC-6 remote and set-up time can be reduced by power linking multiple units.

FEATURES:

High-powered custom gobo projector with a punchy 70 W LED

Innovative manual rotation knob allows fast indexing without gobo removal

Manual zoom for short-throw or long-throw applications

Includes 10 popular holiday gobos

Access most functions via the optional IRC-6 remote

Reduce set-up time by power linking multiple units

Fits best in the CHS-40 VIP gear bag

Includes 10 popular holiday gobos

SPECIFICATIONS:

DMX Channels:1
DMX Connectors:3-pin XLR
Light Source:1 LED (cool white) 70 W, (3A), 50,000 hours life expectancy
PWM Frequency:4000 Hz
Illuminance:(21°): 8,030 lux @ 2 m
(38°): 2,660 lux @ 2 mLumens: 2,894
Power Linking:7 units @ 120 V; 14 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:74 W, 1 A @ 120 V, 60 Hz
72 W, 0.6 A @ 230 V, 50 Hz
Weight:5.8 lb (2.6 kg)
Size:13 x 6 x 5.7 in (330 x 150 x 145 mm)
Approvals:CE
Gobo Size (E): 37.3 mm outside, 22 mm image, 1 mm max thickness
Zoom Angle (manual): 21° to 38°
Bracket Mounting Hole: 13 mm
Optional Controllers: IRC
WHAT'S INCLUDED
Gobo Zoom 2
Power cord
Quick Reference Guide

Chauvet GoboZoom 2 (Chauvet DJ Gobo Zoom2)
