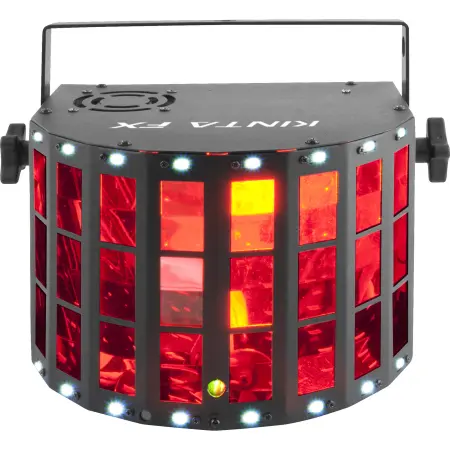

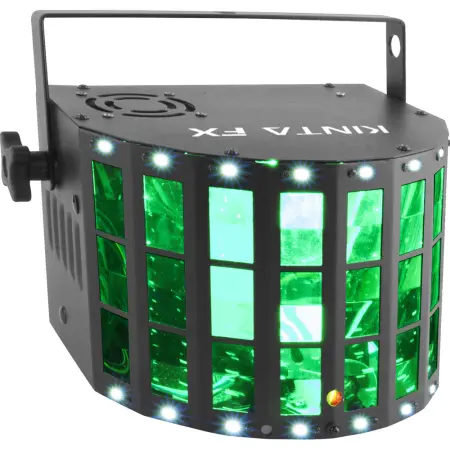

Kinta FX combines an LED derby effect, laser and SMD strobe in one compact fixture. These effects can be coordinated to create a variety of exciting looks that feature multicolored derby beams, dynamic strobes and chases plus hundreds of sharp red and green laser beams. Control this versatile fixture easily via DMX, master/slave, optional IRC-6 remote or its digital display. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-30 VIP Gear Bag.
Compact multi-effect with a Kinta, Laser and SMD Strobe.
LED Kinta effect projects countless razor sharp multicolor beams.
SMD strobes produce eye-catching strobe effects and chases.
A red and green laser that casts hundreds of beams.
Master/Slave with other Mini Kinta FXs for a coordinated show.
Easily control the unit from DMX, Master/Slave, IRC-6 or the digital display.
Save time running cables and extension cords by power linking multiple units.
DMX Channels: 2 or 9
DMX Connectors: 3-pin XLR
Light Source: (Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy
(Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy
(Laser): 650 nm/100 mW (Red) laser diode, 532 nm/30 mW (Green) laser diode
Strobe Rate: 0 to 20 Hz
Power Linking: 16 units @ 120 V; 31 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
32 W, 0.5 A @ 120 V, 60 Hz
31 W, 0.3 A @ 230 V, 50 Hz
Weight: 3.8 lb (1.7 kg)
Size: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
Optional Controllers: IRC-6
