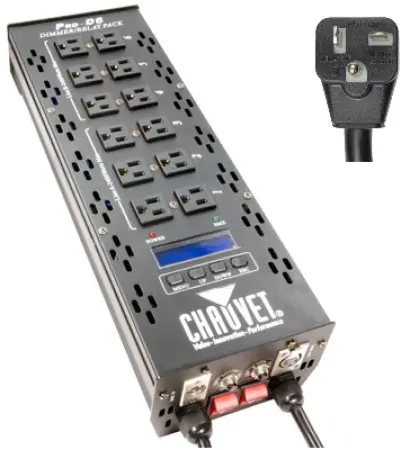

Chavuet PRO-D6 (Chauvet PROD6 Dimmer Pack)

The Pro D6 is a 6-channel DMX-512 dimmer/switch pack designed to work on multiple voltages (115V and 230V) simultaneously, and comes fitted with 20 amp connectors for this purpose. It offers variable electronic dimming and each channel can be set as either dimmer or relay.

6-channel DMX-512 dimmer / relay pack
Each channel can be set to any DMX address
Each channel can be set as either dimmer or relay
Variable electronic dimmer (0-100%)
Dimmer curve selection for each channel: square, switch or linear
Dual 20A power lines (requires 2 separate circuits on the same phase)
Individual switch, circuit breaker and plug per line
Accommodates different input voltages simultaneously
2 Edison plugs per channel

Input voltage equals output voltage
Output: 10A per channel, 20A per power line, 40A max
AC power: Autoswitching 100V – 240V 50/60Hz
Weight: 9.3lbs (4.2kg)
Size: 18in x 5.8in x 3.8in / 457mm x 147mm x 97mm
