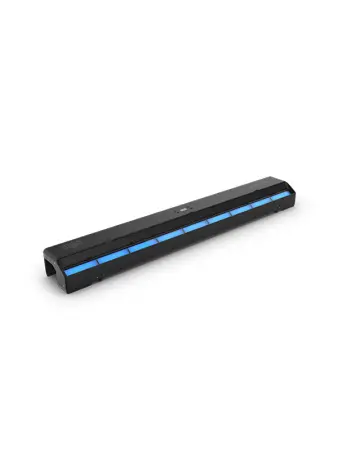

Ovation CYC 3 FC goes to new lengths to deliver a homogeneous field of light with significant reach. Its sleek low profile blends discreetly into stage sets as either a cyc wash or footlight and pairs perfectly with the CYC 1 FC to easily extend coverage with seamless consistency in interchangeable configurations. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation CYC 3 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low profile of the unit, it can also be used effectively as a footlight. This versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features included omega brackets.

AT A GLANCE
Low-profile and lightweight cyclorama wash or footlight fixture, in a 1m length to complement the Ovation CYC 1 FC

Display a full spectrum of hues with RGBAL LEDs for theatre, film, and production

Theatre-ready with 16-bit dimming of master dimmer and individual colors

Beam modification with built in “kick stands” and adjustable glare shield

Flat, even field of light with superior color mixing

Virtual Color wheel with color matched to popular gel colors and color temperature presets

RDM (Remote Device Management) for added flexibility

Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Silent operation for use in studio and theatre applications

Optical
Light Source 180 LEDs (36 Red, 36 Green, 36 Blue, 36 Amber, 36 Lime) 2.5 to 3.5 W, (725 mA)
Color Temperature 2800 to 6500K
CRI 90 (at 3200K)
Beam Angle 111.4° (Horizontal), 76.7° (Vertical)
Field Angle 151.8° (Horizontal), 134.4° (Vertical)
Illuminance 19,575 Lumens
280 Lux at 16.4' / 5 m
PWM Frequency 600, 1200, 2000, 4000, 6000, 25,000 Hz
Dynamic Effects
Dimmer Electronic
Shutter/Strobe Electronic
Strobe Rate 0 to 29 Hz
Standalone Color Mixing Yes
Color Temperature Presets Yes
Dimmer Modes 4
Dimmer Curves 4
Automated Programs Built-In
User Programs Yes, with Recall
Control
Control Protocol DMX, RDM
DMX Channels 1, 3, 5, 7, 10, 12, 13, 16, 17, 33
Modes/Personalities 11 Personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV)
Connections
Power Connections Edison (Local) Plug to Seetronic PowerCon IP65
Power Input Seetronic PowerCon IP65
Power Output Seetronic PowerCon IP65
Data Connector 5-Pin XLR
Cable Length 5' / 1.5 m (Power)
Power
Input Voltage 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking 4 Units at 120 V
6 Units at 208 V
7 Units at 230 V
Power and Current 345 W, 2.93 A at 120 V, 60 Hz
338 W, 1.77 A at 208 V, 60 Hz
334 W, 1.64 A at 230 V, 50 Hz
Physical
Housing Material Die-Cast Aluminum
Color Black
Dimensions 47.13 x 6.3 x 4.33" / 119.7 x 16 x 11 cm
Weight 24.6 lb / 11.2 kg
Packaging Info
Package Weight 30.54 lb
Box Dimensions (LxWxH) 52.5 x 10 x 8"

Chauvet Professional OVATIONCYC3FC (Chauvet Pro Ovation CYC 3FC)
