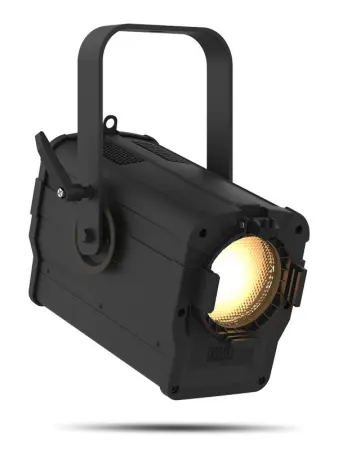

Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television, studios and theatres. It projects a bright, beautifully soft field of light within a 30°- 69° field angle controlled by a manual zoom.

AT A GLANCE
Compact warm white Fresnel for tight spaces and on-location lighting
Soft and even field of light
16-bit dimming resolution for smooth fades
Virtually silent operation for use in any situation
Manually controlled variable zoom angle between 30° to 69°

SPECIFICATIONS
OPTICAL
Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy
Color Temperature (at full): 3200 KCRI: 91
Beam Angle: 18° to 56°
Field Angle: 30° to 69°
Zoom Angle: 30° to 69°
Lumens (30°): 795
Lumens (69°): 1,920
Illuminance (30°) : 279 lux @ 5 m
Illuminance (69°): 100 lux @ 5 m

DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: No
Color Temperature Presets: No
Dim Modes: 4
Built-in Automated Programs: No
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz

CONSTRUCTION / PHYSICAL
Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
Weight: 4.8 lb (2.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 3.25 in (83 mm)

CONNECTIONS
Power Connection: Edison plug to hard-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR
Cable Length (signal): 1.79 ft (0.54 m)
Cable Length (power): 3.5 ft (1.07 m)

CONTROL
Control Protocol: DMX
DMX Channels: 1, 2 or 5
Modes/Personalities: 3personalities (1CH, 2CH, 5CH)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 34 W, 0.267 A @ 120 V, 60 Hz
Power and Current: 38 W, 0.150 A @ 208 V, 60 Hz
Power and Current: 45 W, 0.163 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location

WHAT'S INCLUDED
Ovation F-55WW
Gel Frame

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F3.25” Barndoor
