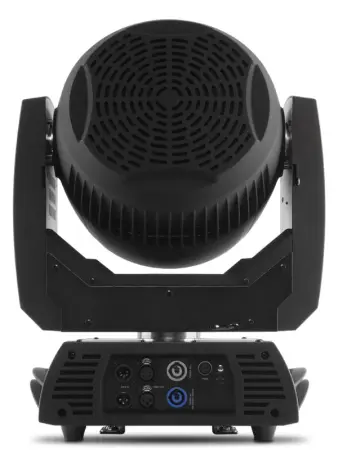

Rogue R3 Wash is an ideal moving wash workhorse for rental and production inventories. Durable and dependable, it outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 (15 W) RGBW quad-LEDs. A quick moving zoom range of 12° – 49° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.

Features:

Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
37 RGBW LEDs, 15 W each
9 zones of LED control for pixel mapping effects
Unique lens design offers excellent color mixing
6 distinct dimming modes for different dimming needs
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
RDM (Remote Device Management) for added programming flexibility

Specifications:

OPTICAL

Light Source: 37 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle: 8° to 30°
Field Angle: 12° to 49°
Zoom Angle: 12° to 49°
Illuminance (12°): 21,000 lux @ 5 m
Illuminance (49°): 1,902 lux @ 5 m
PWM Frequency: 2,400 Hz

DYNAMIC EFFECTS

Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

Dimensions: 15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
Weight: 38.5 lb (17.46 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS

Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDM
DMX Channels: 21, 58, 99
Modes/Personalities: 3 personalities

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
Power and Current: 660 W, 6.21 A @ 120 V, 60 Hz
Power and Current: 689 W, 3.40 A @ 208 V, 60 Hz
Power and Current: 704 W, 3.10 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, METIP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

Rogue R3 Wash
Neutrik® powerCON® power cord
Omega bracket with mounting hardware

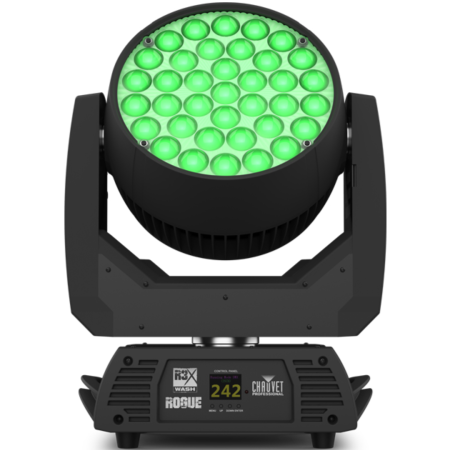

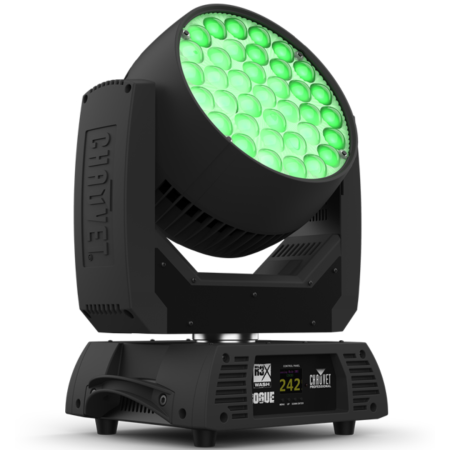

Chauvet Professional Rogue R3X Wash (Chauvet Pro ROGUER3XWASH)
