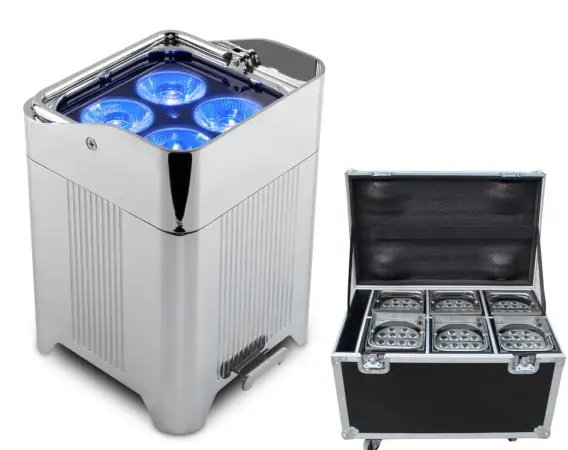

WELL Fit
WELL Fit is a must for event lighting.  A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any décor. WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.

AT A GLANCE
A completely wireless IP 65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.
Chrome exterior for blending into its surroundings.
Drop in case charging for easy storage and re-charging of the battery.
8 hours of operation at full and a quick 5 hours charging time for frequent use.
Built in automated programs recallable by IR, WDMX or manually.
M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.

SPECIFICATIONS
OPTICAL

Light Source: 4 LEDs (quad- color RGBA) 10 W, (720 mA), 50,000 hours life expectancy).Beam Angle: 11°Field Angle: 18°Illuminance (18°): 800 lux @ 5 mPWM Frequency: 1200 Hz
DYNAMIC EFFECTS

Color Macros: 5 macrosDimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 0 to 24 HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Modes: 4Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL

Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm)Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)Weight (single unit) 7.4 LB (3.4 kg)Weight (charging case): 103.6 lb (47 kg)Exterior Color: ChromeHousing Material: Aluminum die-cast
CONNECTIONS

Power Connection: Edison (Local) plug to Neutrik® powerCONPower Input: Neutrik® powerCON®Cable Length (power): 5 ft (1.5 m)
CONTROL

Control Protocol: W-DMX™, IRCDMX Channels: 3, 4, 6 or 10Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current (single unit charging): 48 W, 0.44 A @ 120 V, 60 HzPower and Current (charging case): 288 W, 2.44 A @ 120 V, 60 HzPower and Current (single unit charging): 48 W, 0.25 A @ 208 V, 60 HzPower and Current (charging case): 288 W, 1.5 A @ 208 V, 60 HzPower and Current (single unit charging): 48 W, 0.23 A @ 230 V, 50 HzPower and Current (charging case): 288 W, 1.38 A @ 230 V, 50 Hz
BATTERY

Battery type: Lithium IonRechargeable: YesBattery Charge Time: 5 hoursBattery Life: (all on) 8 hours, (single LED) 20 hoursBattery Power: 14.8 V, 11 Ah
CERTIFICATIONS / QUALIFICATIONS

CEIP Rating: IP65, temporary outdoor/wet use
WHAT'S INCLUDED

WELLFITX6(6) WELL FIT(1) Charging case(1) IR remote(1) powerCON power cable with Edison plug(1) QRG(1) Warranty card
OPTIONAL ACCESSORIES

ClampsW-DMX Transmitter

Chauvet Well-Fit 6Pack (Chauvet Pro Well Fit Six Pack)
