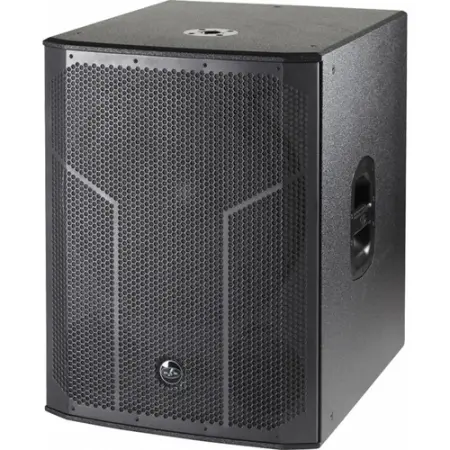

The 18" D.A.S. Audio ACTION-S18A is a 1500W powered subwoofer that’s portable, versatile, and simple to use. It is designed to supplement a main PA speaker, offering a louder and deeper bass extension to the ACTION-508A, -512A, -515A, or any full-range PA speaker, and it's suitable for audiences up to 300. The onboard DSP processing, 2-input mixer, and LCD interface with easy-to-use presets help working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound quickly.

The subwoofer provides 134 dB of peak SPL—plenty of volume for mid-sized venues including houses of worship, conference centers, performance spaces, and meeting rooms. The highly efficient 1500W Class-D amplifier powers the 18” woofer, providing a deep, clean, and detailed bass response with a frequency range of from 125 down to 35 Hz.

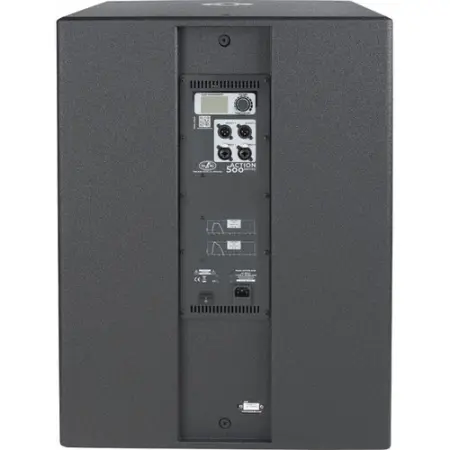

The rear panel offers two inputs. Inputs 1 and 2 feature line-level combo XLR-1/4" connectors. Two XLR Thru-Outputs are available for daisy-chaining to additional subwoofer / speakers. All inputs are mixed to a mono signal internally. For a true stereo L/R operation, two S18As are needed with each to receive independent the left and right signals respectively. The ACTION-S18A ships with a standard IEC power cord.

Display with DAScontrol DSP
Channel 1 & 2 input meters: provide visual confirmation of gain staging with clip notification
Master output meter: provides visual confirmation of output levels with RMS metering and limit notification
Presets: select from factory presets for your application
LOUD: provides an even bass response
DEEP: provides a boost at 50 Hz
High-Pass Filter: On/Off (for use with subwoofer)
Top: for use with ACION-Series full-range tops
63 Hz
100 Hz
Main Features
Active subwoofer system
1500 W (peak) Class-D amplifier
Birch plywood enclosure
Durable ISO-flex paint
DAScontrol interface for easy setup and adjustment
DSP with presets and LCD screen
Applications
Live sound reinforcement
Bands, DJs, and performers
Speech and vocals
Music playback in entertainment
A/V, conferences, and presentations

SPECIFICATIONS:

PA Speaker
Configuration
Active Subwoofer
Enclosure Type
Bass-Reflex Subwoofer
Amplifier Power Rating
LF:
1500 W Peak
750 W RMS
Amplifier Class
Class-D
Drivers
LF Driver
1 x 18" / 45.72 cm Woofer
LF Voice Coil
3" / 76.2 mm
Performance
Frequency Range
35 Hz to 125 Hz -10 dB
Maximum SPL
134 dB (Peak)
Input Sensitivity
+8 dBu
I/O Impedance
Input:
20 Kilohms (Balanced)
Connectivity
Audio I/O
2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line Input
2 x XLR 3-Pin Male Balanced Thru/Output
Signal Processing
Crossover
High-Pass:
Internal
Alignment Delay
Yes
Digital Signal Processing
Voicing Modes
Power
AC Input Power
Universal:
115 to 230 VAC, 50 / 60 Hz (T 5 A L 250 V)
AC Power I/O
1 x IEC Input
Current Consumption
120 VAC:
2.8 A (1/3 Power)
230 VAC:
1.4 A (1/3 Power)
Power Consumption
325 W
Physical
Mounting
M10 Fly Point
1 x 1.38" / 35 mm Pole Socket (Top)
Handles
1 x Each Side
Construction Material
Plywood
Dimensions
28.4 x 26 x 21.5" / 721.4 x 660.4 x 546.1 mm
Weight
93.7 lb / 42.5 kg

DAS Audio ACTION-S18A (DAS ACTION S18A)
