FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

FEATURES:

Active 2-way stage monitor
Coaxial configuration
Linear phase FIR Filters
Ultra-precise directivity
Rotatable horn (90°x60° or 60°x90° dispersion)
Front-rear grille design
Integrated handle on bottom side

SPECIFICATIONS:

Technical Data
Speaker Type2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB]57 - 19.000 Hz
Max SPL125 dB
HF1", 1" v.c.
Directivity60°X90°
HornRotatable
LF10", 2" v.c.
Amplifier
Amp ClassClass D
Peak Power800 W
Processor
ControllerDSP 28/56 bit
AD/DA Converter24 bit/48 kHz
System Presets8 presets
LimiterPeak, RMS, Thermal
Advanced DSP FunctionFIR Filters
Crossover Frequency1800 Hz
Slope LF/HF24 dB/oct
Mechanics
HousingPlywood
Housing DesignMultifunctional
Handles1 integrated on bottom side
Pole mount36 mm
Width390 mm (15.35 in)
Height268 mm (10.55 in)
Depth411 mm (16.18 in)
Weight11.3 kg (24.9 lbs)

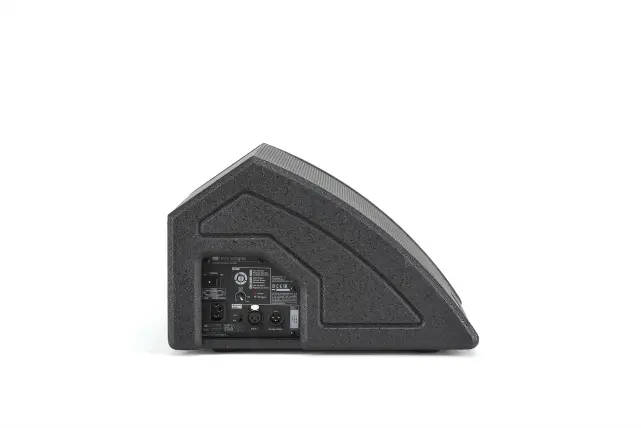

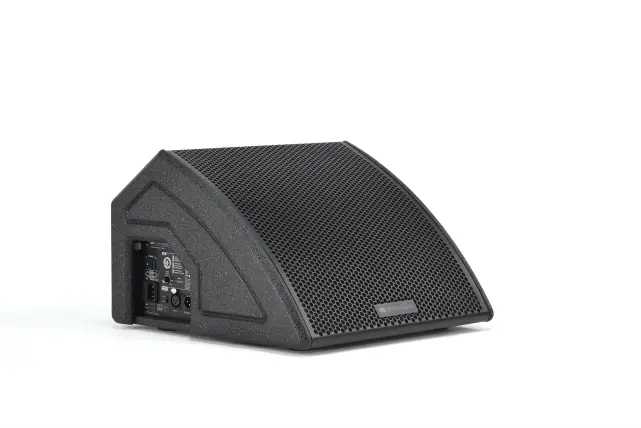

dB Technologies FMX 10 (dB Tech FMX-10)
