Elation ART500

- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

Elation ART-500
SKU# ART500

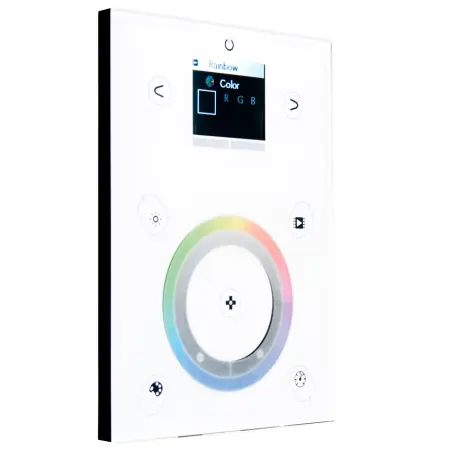

The ART500™ is a touch panel DMX Controller with 1,024 DMX channels and 500 preset scenes, designed to be the most effective control solution for architectural control. Included is the ART500™ software package, which offers an easy to navigate interface, combined with powerful control features.


SPECIFICATIONS

Power Input: 6VDC (Transformer Included)

DMX Output: 1024 DMX Channels, 2 Universes

Software OS Compatibility:
Windows XP, Vista, 7, 8 (ESA Pro), Mac OS X (ESA2)

Trigger Protocols: 8 x Dry Contact Trigger, Calendar Trigger, RS-232, IR

Mounting: Single Gang Electrical Box (Not Included)

Housing: Glass Panel, Polycarbonate Body

Operating Temp: 14º - 113º F (-10º - 45º C)

Connectors: Screw Terminal Blocks and RJ45, USB Cable (Included)

Storage: Micro SD Card (Included)

SIZE / WEIGHT
Length: 4.17” (106mm)
Width: 0.4” (11mm)
Vertical Height: 5.7” (146mm)
Weight: 0.5 lbs. (0.2kg)

APPROVALS / RATINGS
CE | cETLus | RoHs | IP20

Elation Lighting Art 500 (Elation ART-500)
