The new COLOUR CHORUS™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6' (1.8m) fixture lengths, featuring long life individual 3W (Red, Green, Blue, Amber) LEDs, 100,000 hour average LED life, individual hue, saturation, and intensity control, LED group control, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

FEATURES
Individual Hue, Saturation, and Intensity Control
ArtNet™ / Klingnet™ / RDM Protocol Support
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE / PHOTOMETRIC DATA
Individual 3W (Red, Green, Blue ,Amber) LEDs
100,000 Hour Average LED Life

Colour Chorus72™
(288) Total LEDs (72 per each color)
23,000 LUX (2,137 FC) @3.3’ (1m) (88° FULL ON)

EFFECTS
Strobe and Chase Effects
Variable Dimming Curves
Individual Hue, Saturation, Intensity Control

CONTROL / CONNECTIONS
Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support
(2) RJ45 Ports, 3pin and 5pin DMX In/Out
powerCON Power In/Out
Multiple Unit Power Linking
Colour Chorus72™
Length: 69.3” (1760mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 53.0 lbs. (24.0kg)

ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
Colour Chorus 72™ - 630W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP30

INSTALLATION
Rigging: Integrated Rigging Brackets
Working Position: Any (360°)

INCLUDED ITEMS
powerCON Cable

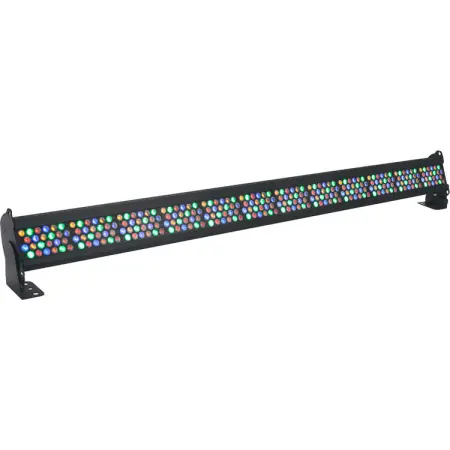

Elation Professional Colour Chorus 72 (Elation Color Chorus 72)
