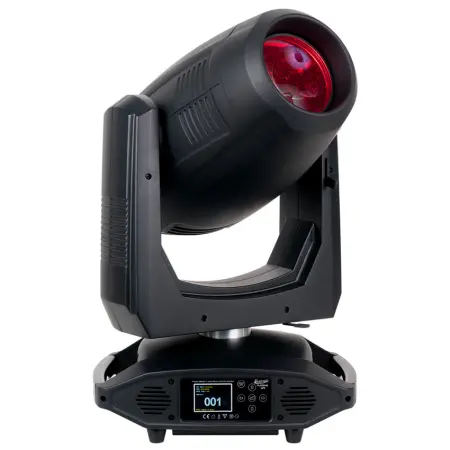

The Elation Platinum HFX is a hybrid versatile 3-in-1 luminaire which can be utilized as a beam, spot, or wash fixture, featuring the brand new Philips™ MSD Platinum 14R 280W 80CRI lamp, 7,800K, 12,000 total lumens, 2.3° to 15° zoom in beam mode, 3° to 22° zoom in spot mode, and 10° to 34° zoom in wash mode, 13 dichroic colors including UV and a new Quad Color (RGBY) filter, CTO and CTB color correction, 8 rotating-interchangeable and 12 static-stamped gobos, 8-facet and linear rotating, and 10-facet static prisms, wash frost effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin DMX, RJ45 Ethernet, and powerCON in/out connections, (6) button control full color 180° reversible menu display, and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
Hybrid Beam, Spot, and Wash 3-in-1 Luminaire
New Philips™ MSD Platinum 14R 280W 80CRI Lamp
12,000 Total Lumens, 7,800K, 2,000 average hours*
2.3° - 15° Beam, 3° - 22° Spot, and 10° - 34° Zoom
10-Facet, 8-Facet, and Linear Prisms / Wash Frost Effects
13 Dichroic Colors Including UV and Quad Color (RGBY)
CTO and CTB CTO Color Correction
8 Rotating Interchangable + 12 Static-Stamped Gobos
RDM, KlingNET™ and Art-NET (DMX Over Ethernet)

SOURCE
Philips™ MSD Platinum 14R 280W Lamp
2,000 Hour Average Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
12,000 Total Lumens, 7,800K, 80CRI
125,800 LUX 11,687 FC @49.2’ (15m) (2.3° Beam)
13,375 LUX 1,243 FC @49.2’ (15m) (3.0° Spot)
11,500 LUX 1,068 FC @16.4’ (5m) (10.8° Wash)

EFFECTS
8-Facet and Linear Rotating and 10-Facet Static Prisms
Strobe and Electronic Dimming
Zoom, Iris and Wash Frost Filter

COLOR
13 Dichroic Colors Including UV and Quad Color (RGBY)
CTO and CTB Color Correction

GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Gobos
(12) Static-Stamped / Indexing Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 26)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
powerCON Power In/Out

SIZE / WEIGHT
Length: 16.0” (406mm)
Width: 11.5” (292mm)
Vertical Height: 27.0” (686mm)
Weight: 50.0 lbs. (22.7 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
450W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | IP20

INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (1

Elation Professional Platinum HXF (Elation HFX Platinum)
