Elation SMARTY HYBRID FIL

$4,400.00 new
Reviews: 0 Description Financing Q&A: 0
or $400/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time
Low Price Guarantee



or $ 400/mo $0 Shipping, $0 Tax


Product Description

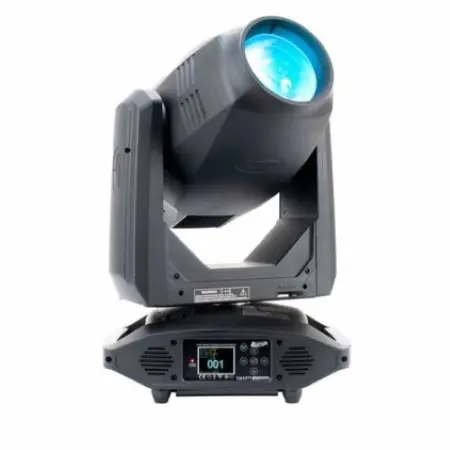

A compact, full featured CMY color mixing spot, Elation's Smarty Hybrid FIL is a spot, beam, and wash hybrid luminaire built with Philips™ MSD Platinum Flex 200 lamp with "FLEX" technology for stronger output and longer life. "FLEX" technology uses a smartly designed discharge lamp/ballast pair to produce high output at an efficient, long life solution of up to 6,000 hours. A versatile fixture for the effects you crave, features include an 11,000 lumen output, motorized zoom ranges of 1° to 18° [in beam mode] and 5° to 33° [in spot mode], full CMY color mixing system, frost filter for wash effects, 13 dichroic colors including Quad-color filter, CTB, CTO, and UV, 8 rotating interchangeable glass and 12 static-stamped metal gobos, 16- and 5-facet linear independent rotating prisms, motorized focus with auto-focus, high speed shutter and strobe, and lamp hibernation mode. Control easily via DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, and Elation's E-FLY™ internal wireless DMX transceiver. The fixture is equipped with 5-pin XLR, RJ45 etherCON, and powerCON TRUE1 in/out connections, as well as a full color 180° reversible menu display with battery backup, and comes with a multi-voltage universal auto switching power supply (100-240v).

Features:
3-in-1 Smart Hybrid Beam, Spot, Wash luminaire with 11,000 total fixture lumens
FLEX Lamp Technology from 190 to 280W + Hibernation Mode
Motorized focus and auto-focus with 1° to 18° Beam and 3° - 27° Spot, 5° - 33° Wash
Full CMY color mixing system (13 colors including Quad Color, CTB, CTO and UV)
8 rotating interchangeable glass Gobos plus 12 static-stamped metal Gobos
Frost filter for Wash effects
DMX, RDM, Art-NET, and sACN support
E-FLY internal wireless DMX transceiver

Specifications:
Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
Phtometric Data:
11,000 Total Lumen Output
128,426 LUX 11,931 FC @49.2’ (15m) (Min Zoom Beam)
135,108 LUX 12,552 FC @16.4’ (5m) (Min Zoom Spot)
Effects:
Beam, Spot, and Wash Modes
Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Rotating Prisms
CMY Color, Gobo, and Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Color:
Full CMY Color Mixing System
13 Colors including Quad Color, CTB, CTO, and UV
Gobos:
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
12 Static-Stamped Metal Gobos
Control/Connections:
2 DMX Channel Modes (20/34 channels)
Full Color 180° Reversible LCD Menu Display
6 Button Menu Control Panel
16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-FLY Internal Wireless DMX Transceiver
Hibernation Mode (Power Save)
5pin DMX In/Out
RJ45 etherCON In/Out
Neutrik TRUE1 Power In/Out
With Wired Digital Communication Network
Electrical/Thermal:
AC 100-240V - 50/60Hz
480W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Approvals/Ratings: CE | cETLus | IP20
Dimensions: 15.2" x 15.9" x 24"
Weight: 49 lbs.

Elation Professional SMARTY HYBRID-FIL   ( Elation SMARTYHYBRID FIL )
