EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth® is available in select countries.
QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

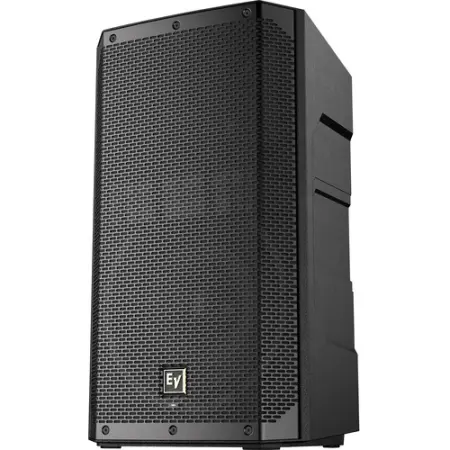

ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers,
three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.
Available Color Black

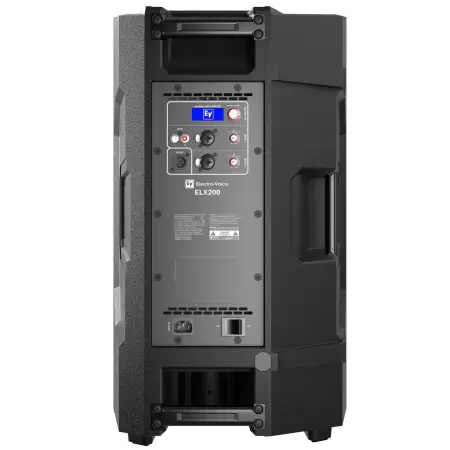

Connector Type (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
Crossover Frequency 1700 Hz
Depth 344 mm
Enclosure Material Polypropylene Composite
Frequency Range (-10 dB) 51 Hz – 20 kHz
Frequency Response (-3 dB) 57 Hz – 16 kHz Hz
Grill 18 AWG steel with powdercoat
Height 629 mm
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-12M 300 mm (12 in)
Max. SPL/1m (calc) 130 dB
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.8A
Power Rating 1200 W
Powered or Passive Powered
Shipping Weight 17.7 kg
Speaker Type Full-Range
Suspension (3) M10 suspension points
Weight Net 15.6 kg
Width 363 mm
Woofer Size 12 inch
