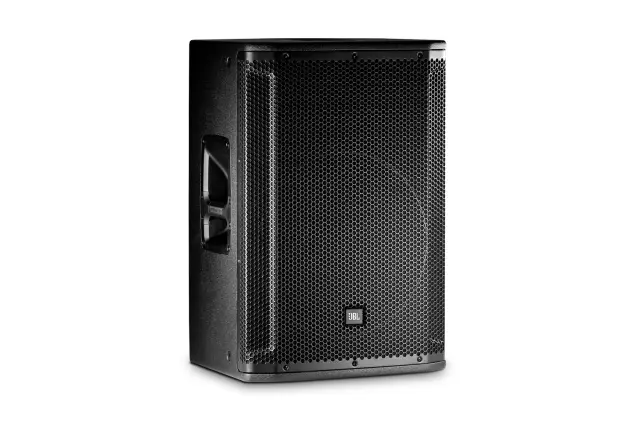

SRX815
15" Two-Way Bass Reflex Passive System

SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Features
Premium JBL Transducers
Rugged, versatile enclosures
Tunings available for Crown amps and dbx signal processors
Fully supported in Audio Architect
Power Handling: 3200W Peak, 1600W Program, 800W Continuous
Frequency Range: 41Hz-20kHz
Frequency Response: 56Hz-20kHz
Max SPL: 130dB (Peak)
Coverage Pattern: 90 x 50
Amplification options: Passive/Bi-Amp
Applications
Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

PURPOSEFUL DESIGN
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Specifications
System Type Passive 15”, two-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB) 41hz - 20khz
Frequency Response (-3 dB) 56hz - 20khz
Sensitivity 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2275H
HF Driver 2432H
Coverage Pattern 90 x 50
Crossover Frequency 1.9khz
Enclosure 18mm Duraflex coated plywood
Monitor Angle 50°
Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in
Weight 57.0 lbs (25.9kg)
Shipping Weight 67.0 lbs (30.4kg)

JBL SRX-815 (JBL SRX 815 P)
