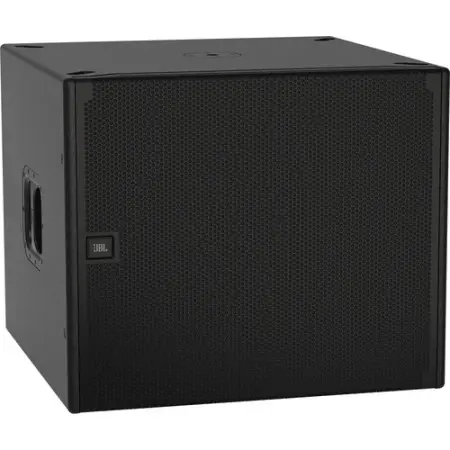

JBL SRX918S | 18in - 134dB

$2,299.00 new
Reviews: 0 Description Financing Q&A: 0
or $209/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time
Low Price Guarantee



or $ 209/mo $0 Shipping, $0 Tax


Product Description
Audio professionals in need of a subwoofer that's designed to complement the SRX900 Series full-range sound reinforcement systems will be impressed with the JBL SRX918S, a single 18" powered subwoofer well suited for rental companies, touring artists, DJs, and installations. The integrated DSP and amplification offer a true plug-and-play experience while providing consistency and optimum performance anywhere in the world.

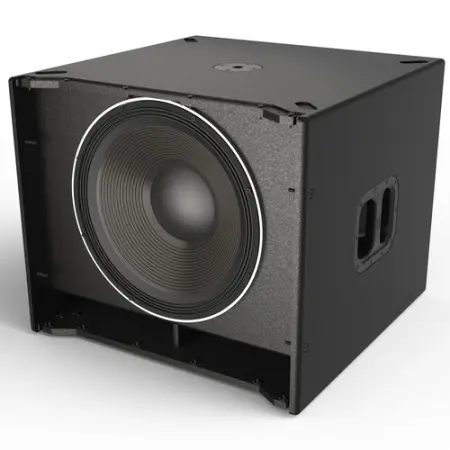

The 18" Differential Drive woofer is powered by the built-in Class-D amplifier and provide a frequency response of 35 to 90 Hz at 134 peak SPL. The SRX918S incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A full-featured software package provides users control of the system on various platforms including Windows, Mac, and iOS for iPad.

Performance
The 2279-1 18-inch woofer delivers transparent, linear bass response down to 35 Hz. This driver uses dual 3" voice coils and leverages JBL's patented Differential Drive technology to deliver maximum sensitivity and power handling in a light, compact design.

Compatibility
SRX900 Series subwoofers are acoustically compatible with all SRX900 full-range speakers and support 60 and 80 Hz operating modes. SRX900 line arrays can be ground stacked with SRX900 subwoofers using the optional base plate accessories.

Controlled Coverage
SRX900 subwoofers can be used in omnidirectional or cardioid configurations simply by selecting the appropriate speaker preset and cabinet orientation. The preset can be accessed directly from the rear panel LCD or via software.
Powered Solution
The fully integrated built-in amplifier and DSP are based on proven JBL technologies and explicitly packaged to fit the needs of the SRX900 Series. The DSP includes everything needed to optimize a system, including 24 user-adjustable filters, 2000ms of delay, and advanced features like array size compensation and FIR-based throw-distance correction filters.

Versatile and Scalable
The SRX900 Series offers a complete system solution, including speakers, subwoofers, accessories, and software that support a variety of configurations and simplify storage, transport, and rigging. Because systems are scalable, it's easy to start with a small system and add components over time. All SRX900 products have been designed to work seamlessly together with other JBL tour sound products, with common voicing targets and phase characteristics that ensure systems combine coherently.

FEATURES:

High-performance, high-density system solution in a truck-pack friendly format
High-power-handling transducer delivers low distortion, high fidelity, and class-leading output
Built-in, passively cooled Class D amplification with a universal power supply
Dual ethernet ports with Neutrik etherCON connectors
Supports HARMAN HControl Ethernet
User-controllable DSP
LevelMax limiting uses sophisticated excursion-control algorithms to protect transducer

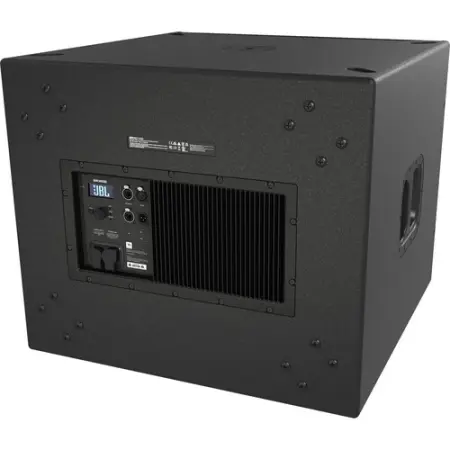

Rear-panel LCD provides complete access to control features
Reinforced 0.7" plywood enclosure

SPECIFICATIONS:

ACOUSTICAL
Frequency Range
(-10 dB) :
(-3 dB) :
35 Hz-90 Hz (Preset: 80 Hz)
45 Hz-80 Hz (Preset: 80 Hz)
Coverage Pattern Options1
: Omnidirectional or Cardioid
Maximum Peak Output² : 134 dB (Preset: 80 Hz)
System Type : Active Subwoofer
TRANSDUCERS
Low Frequency : (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
AUDIO INPUT
Input Type : Balanced line level
Connectors : (2) Neutrik XLR (IN/OUT)
Nominal Input Sensitivity : +6 dBu (system starts limiting with broadband noise and music)
Maximum Input Level : 21 dBu
Input Impedance : 100 kΩ
DSP
Sample Rate 48 kHz
Bit Depth : 24 bit
USER INTERFACE
Type : LCD screen, encoder, Back button, (4) LED Indicators (3 single, 1 bi-color)
AMPLIFIER
Type : Class-D
Number of Channels : (1)
Continuous Power3
: 1100 Watts
Peak Power4
: 2500 Watts
Cooling Type : Convection, external aluminum heat sink, internal on-demand fan
NETWORKING
Type : TCP/IP
Protocol : Harman HControl
Speed : Dual 100 Mbps ports
Connectors : (2) Neutrik etherCON®
AC POWER
Voltage Range
Nominal :
Limits :

100-240 VAC, 50/60 Hz
80-260 VAC, 50/60 Hz
Connectors : Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
CURRENT DRAW
120 V 208 V 240 V
Idle : 0.3 A 0.2 A 0.2 A
Standby : 0.2 A 0.2 A 0.2 A
Continuous5
: 4.0 A 2.1 A 1.9 A
Maximum Instantaneous Peak6
: 18.1 A 8.6 A 7.3 A
Peak Inrush7
: 2.9 A 5.1 A 5.9 A
PHYSICAL
Enclosure : 18 mm plywood, Black DuraFlexTM finish, two integral recessed handles
IP Rating8
: IP54
Grille : Powder coated 1.8 mm (14-gauge) hex perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) : 575 mm x 684 mm x 683 mm
22.6 in x 26.9 in x 26.9 in
Net Weight :
Shipping Weight :
44.5 kg (98 lbs)
51.8 kg (114 lbs)
AC POWER
Voltage Range
Nominal :
Limits :

100-240 VAC, 50/60 Hz
80-260 VAC, 50/60 Hz
Connectors : Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
CURRENT DRAW
120 V 208 V 240 V
Idle : 0.3 A 0.2 A 0.2 A
Standby : 0.2 A 0.2 A 0.2 A
Continuous5
: 4.0 A 2.1 A 1.9 A
Maximum Instantaneous Peak6
: 18.1 A 8.6 A 7.3 A
Peak Inrush7
: 2.9 A 5.1 A 5.9 A
ORDERING INFORMATION
SKU : JBL-P3241MX | SRX918S for Global
JBL-P3248MXCN | SRX918S for China
Included : (1) SRX918S | (1) Neutrik NAC3FX-W-TOP | (1) Neutrik NAC3MX-W-TOP
